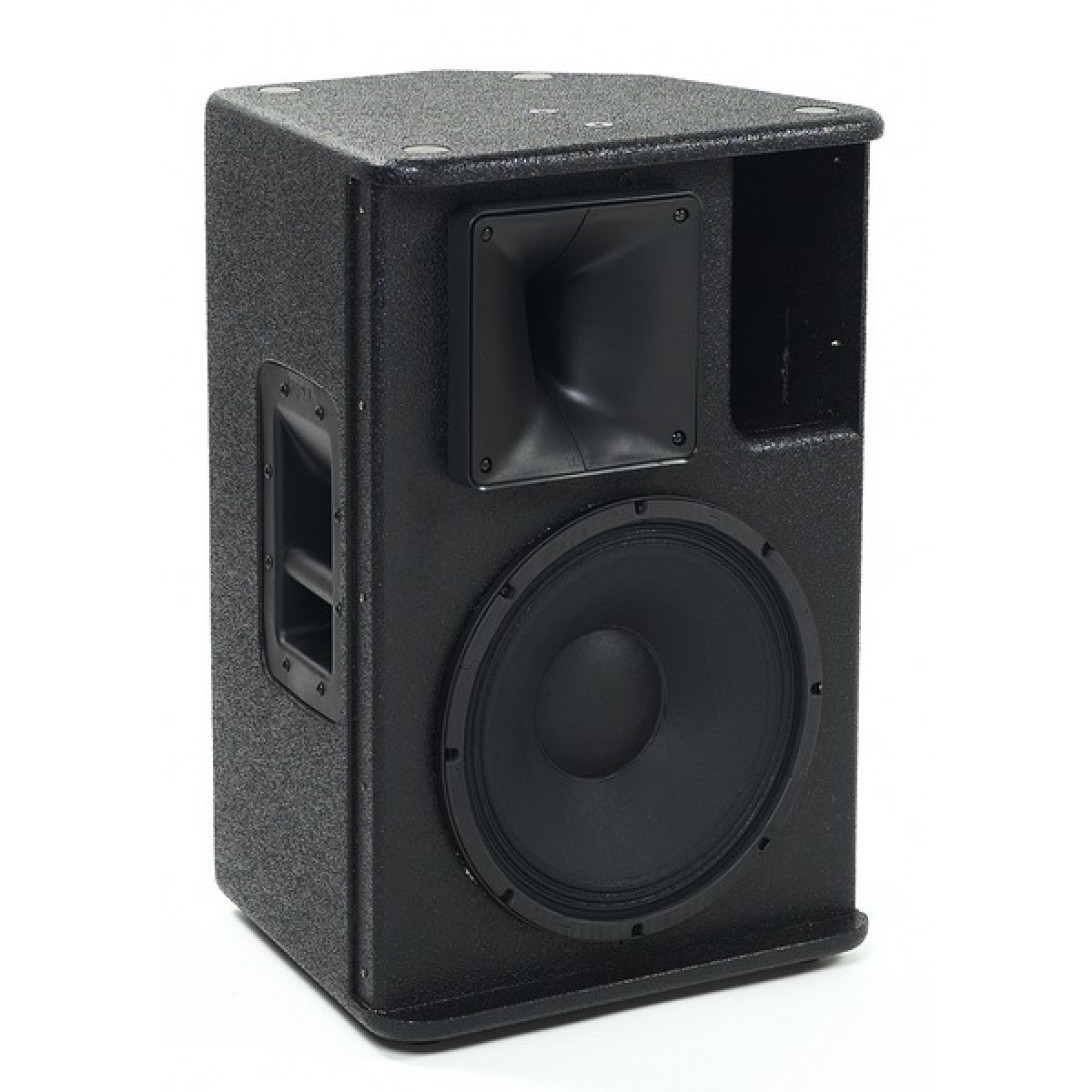

NEOS12A

2-way digitally processed active enclosure

The NEOS Series models mounting 10′, 12′ and 15′ woofers share many important features to offer a choice regarding dimensions and bass frequency reproduction. The available version is passive, but can be converted to bi-amp, or even bi-amplified active, with the addition of a digital processor and a high-efficiency class D amplifier with a switching power supply. Small dimensions and light weight have been privileged in their design to make them user-friendly, and this concept goes even further with the inclusion of M10 coupling points and the double-tilt (0° or 7.5°) stand flange. Whenever high fidelity and dynamics are needed for a monitoring solution, these enclosures can also be used as monitors thanks to their asymmetric profile.

Technical Specifications

[Connectors: IN – LINK: XLR M – XLR F
MAIN: PowerCon® (NAC3MPA)
MAIN LINK: PowerCon® (NAC3MPB)]
[Dimensions (W x H x D): 40 x 60 x 36.5 cm]
[Mounting Pole: 1 x bottom double angle flange, 0° or 7.5°]
[Amplifier Continuous Power: 350 W + 100 W bi-amp]
[Frequency response: 55 Hz – 20 kHz]
[Maximum (peak) Output:127 ]
[Cooling: Natural convection ]
[Monitor Taper: 42°]

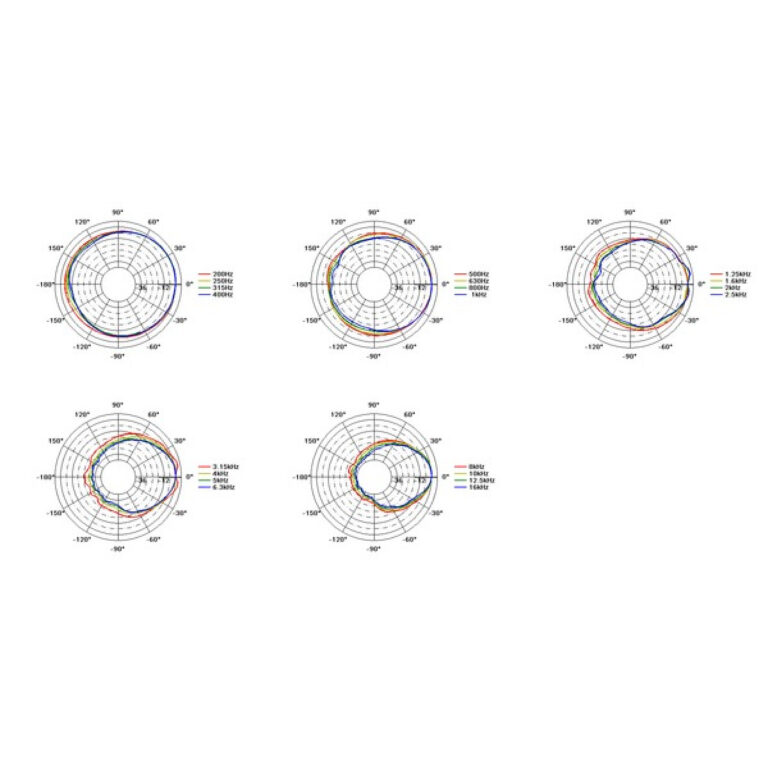

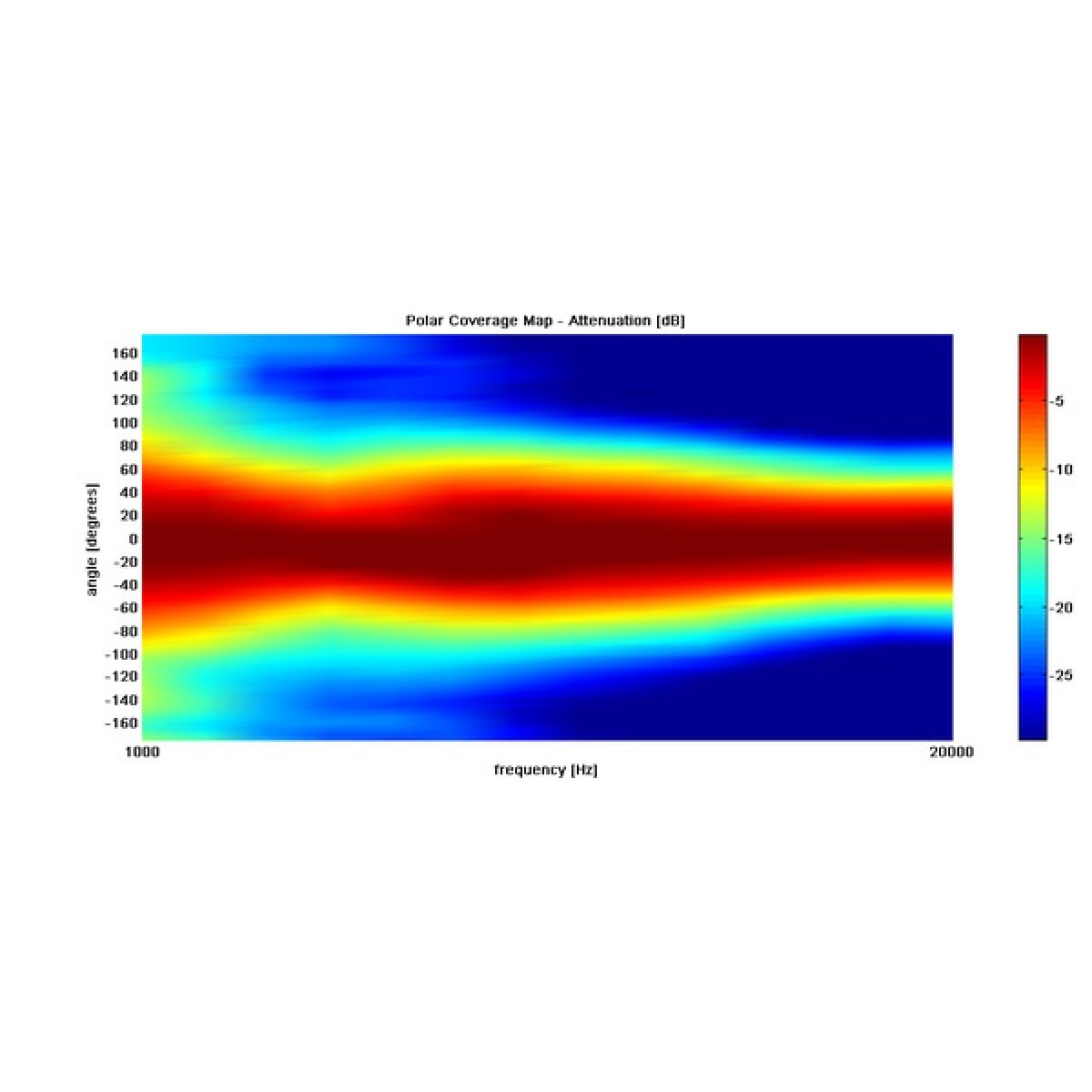

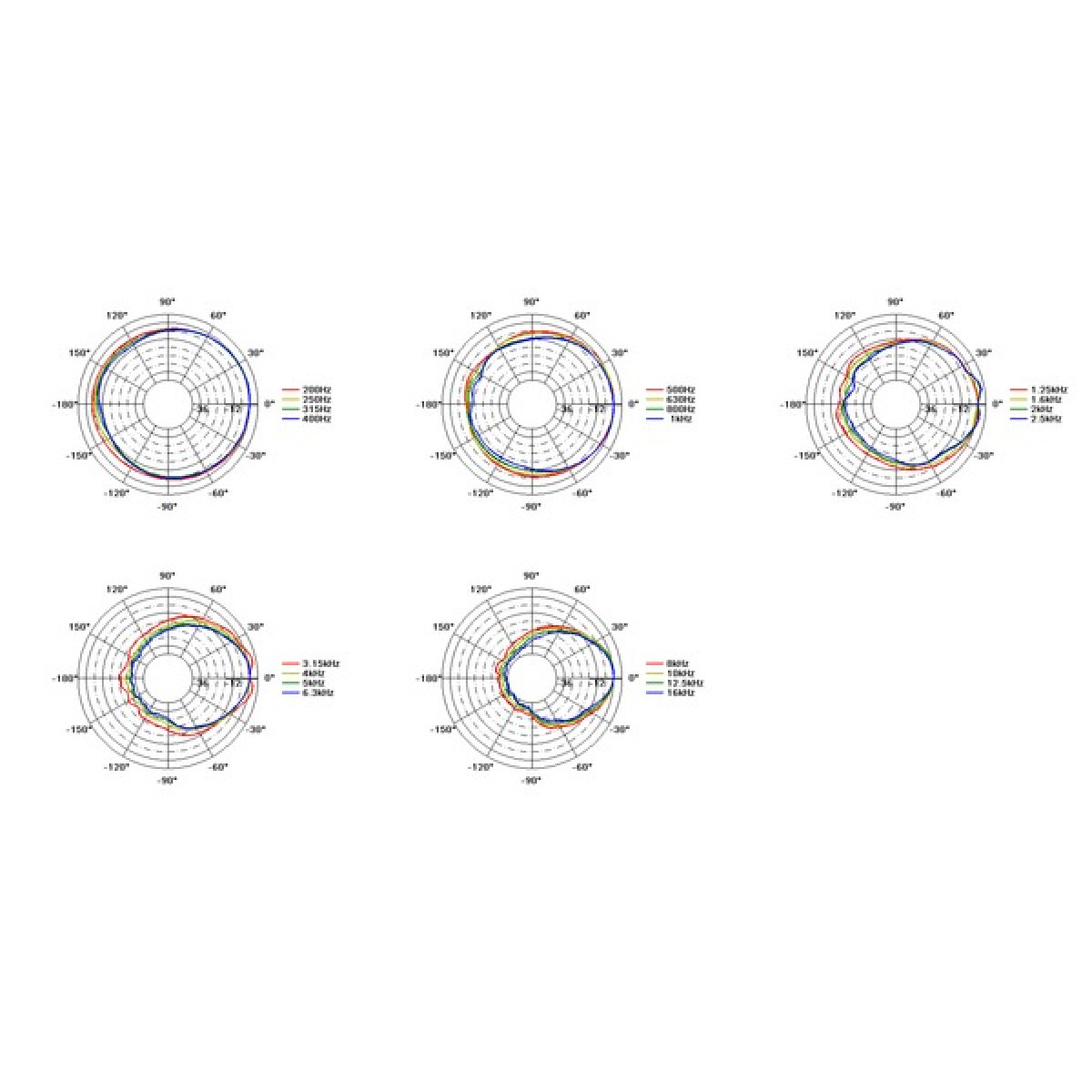

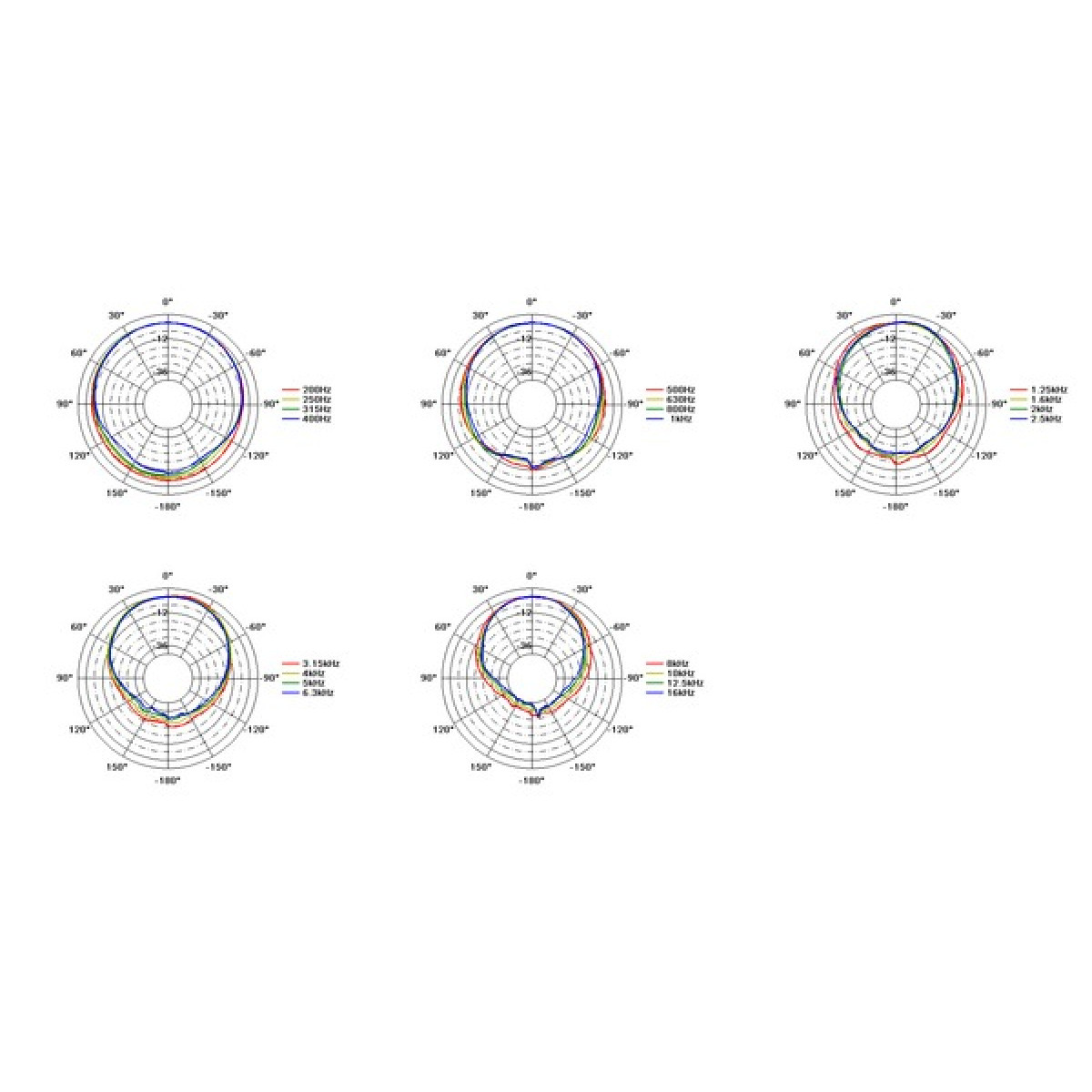

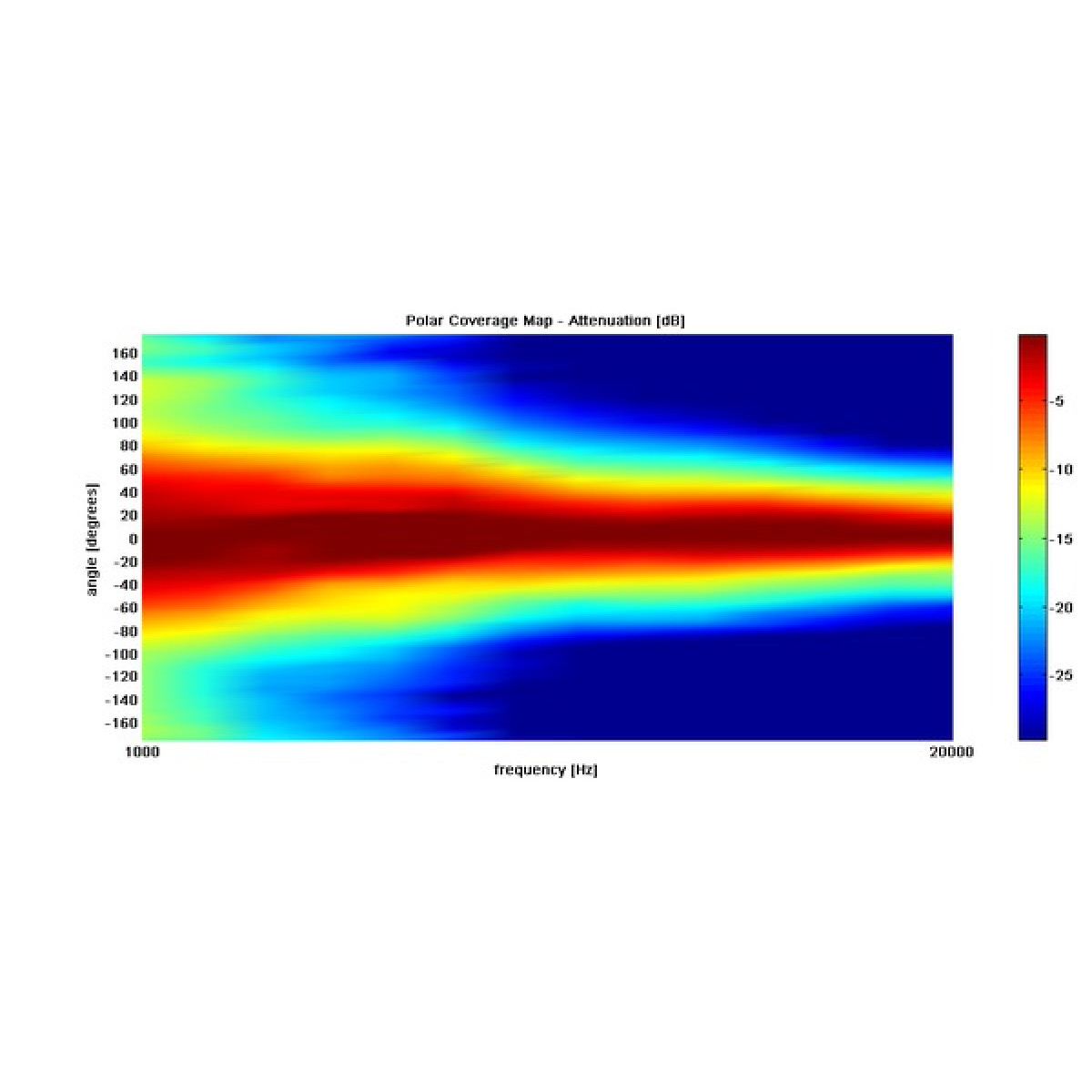

[Angolar coverage: 100°>80° H x 60° V with asymmetrical rotatable horn]
[Grille: Open for easy horn rotation. ]
[Input Impedance: LINE: 20 kohm balanced, 10 kohm unbalanced]
[Controls: amp level (-18 dBu), gnd lift]
[Signal Processing: 24 bit / 48 kHz]
[Finishing: Protector-Coat paint finish]
[Input Sensitivity: LINE: +4 dBu / 1.25 V]
[Low Frequency Device: 12” neodymium woofer – 2.5′ VC]
[Trapezoidal taper: 10°]
[Weight:18 lb ]
[Maximum Power Consumption: 1000 VA]
[Crossover Frequency: 2000 Hz]
[System type: 2-way digitally processed active enclosure]
[Power Supply: 230 VAC 50Hz or 117 VAC 60 Hz]
[High Frequency Device: 1” compression driver – titanium diaphragm]
[Flying System: 4 x M10 – top, bottom, rear]
[Cabinet Colour: Black]
[Construction: 15 and 18 mm birch plywood]
