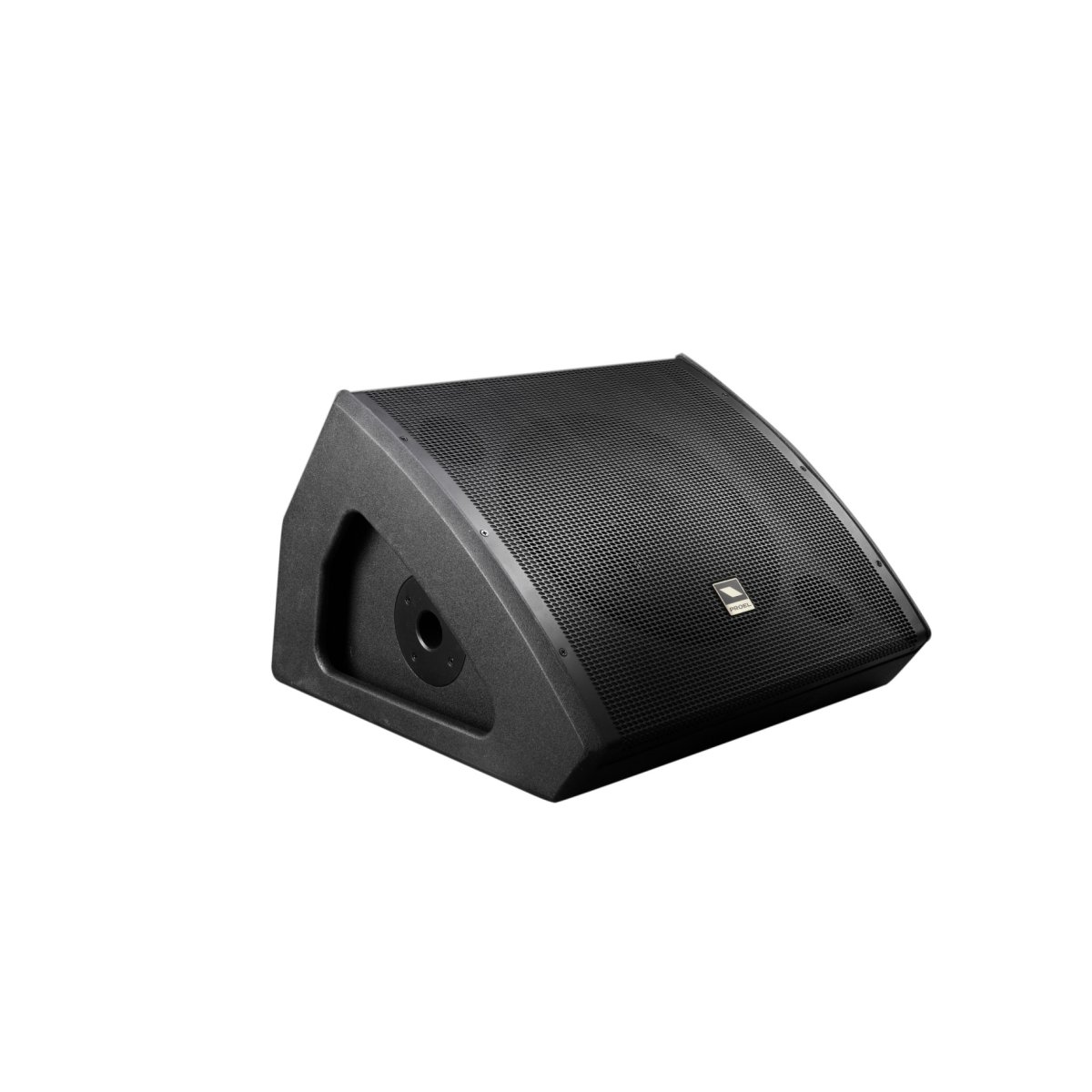

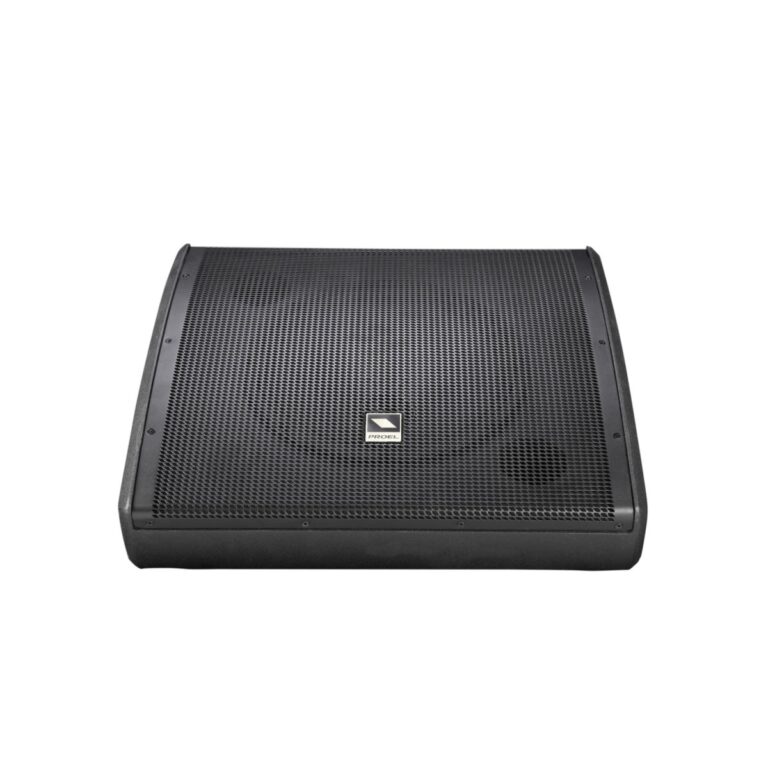

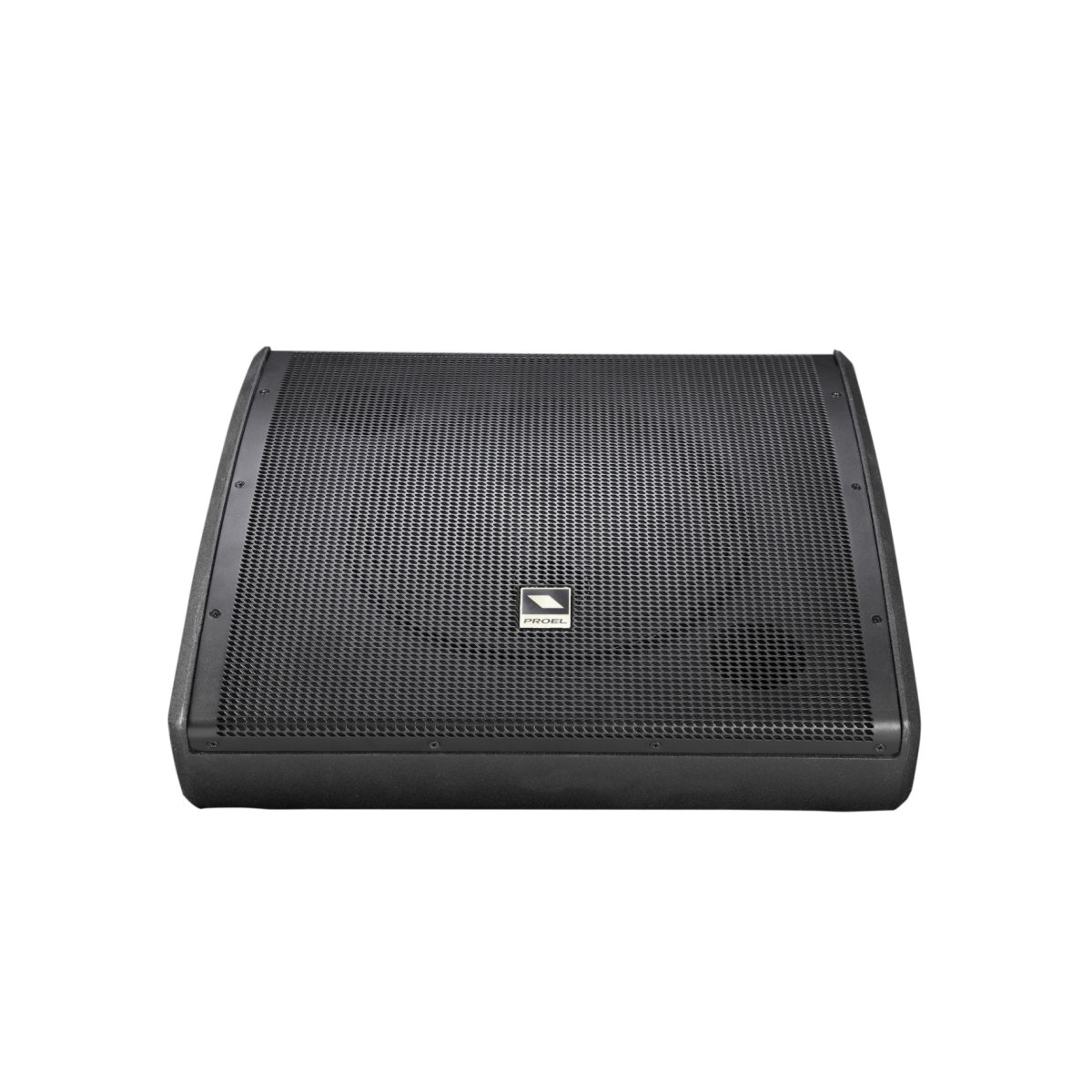

WD12P

Passive 2-way coaxial stage monitor

The WEDGE Series by PROEL is a range of stage monitors designed to offer not only to professional musicians and rental companies, but also to amateur musicians and non professional users, a highly valuable monitoring solution at a very affordable price.Each of the three WD models provides a perfect sound intelligibility and a high SPL in an extremely lightweight and portable enclosure. The coaxial transducers, designed under PROEL specifications, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also for the fact that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for a perfect listening from any position. The low-profile, stylish and unobtrusive cabinet, finished with scratch-resistant polyurethane painting, fits perfectly on any stage.WD12P, with its high SPL and its fullrange response, is the favourite choice for vocals, guitar, horns and electronic instruments or as a high-power monitor for DJs.

Technical Specifications

System type 2-way coaxial vented
Low Frequency Device 12” woofer with 2.5″VC
High Frequency Device 1” compression driver with 1.35″VC
Angular Coverage 80°
Frequency Response 50 Hz – 20 kHz
SPL 1W/1mt 95 dB
Power Handling (AES)  250 W
Connectors 2 x SPEAKON (linked)
Construction Plywood with black anti-scratch polyurethane paint
Pole adapter 1 x side
Handles 2 x sides
Monitor Taper 36°
Weight 13 kg (28.66 lb)
Dimensions (W x H x D) 510x340x500 mm
