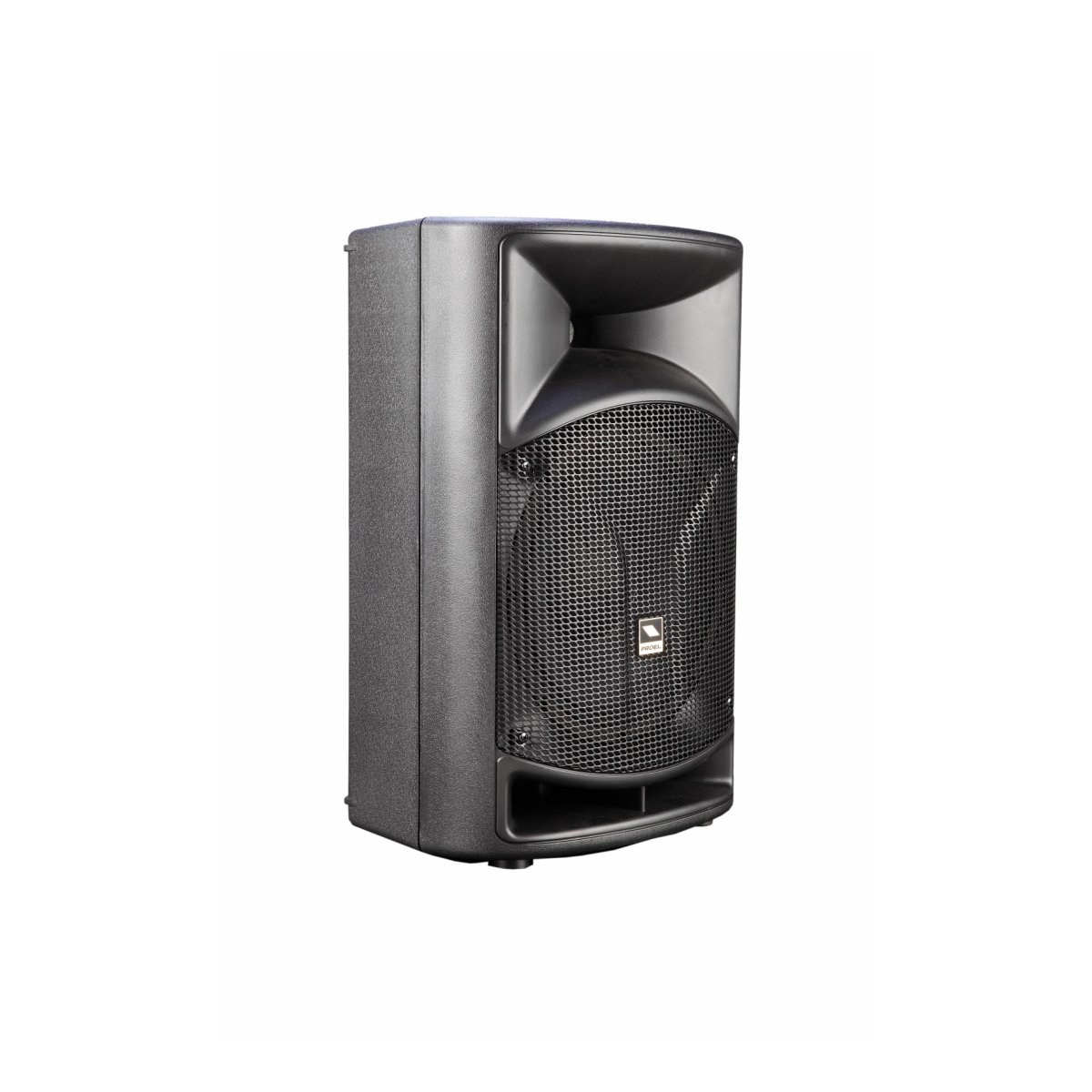

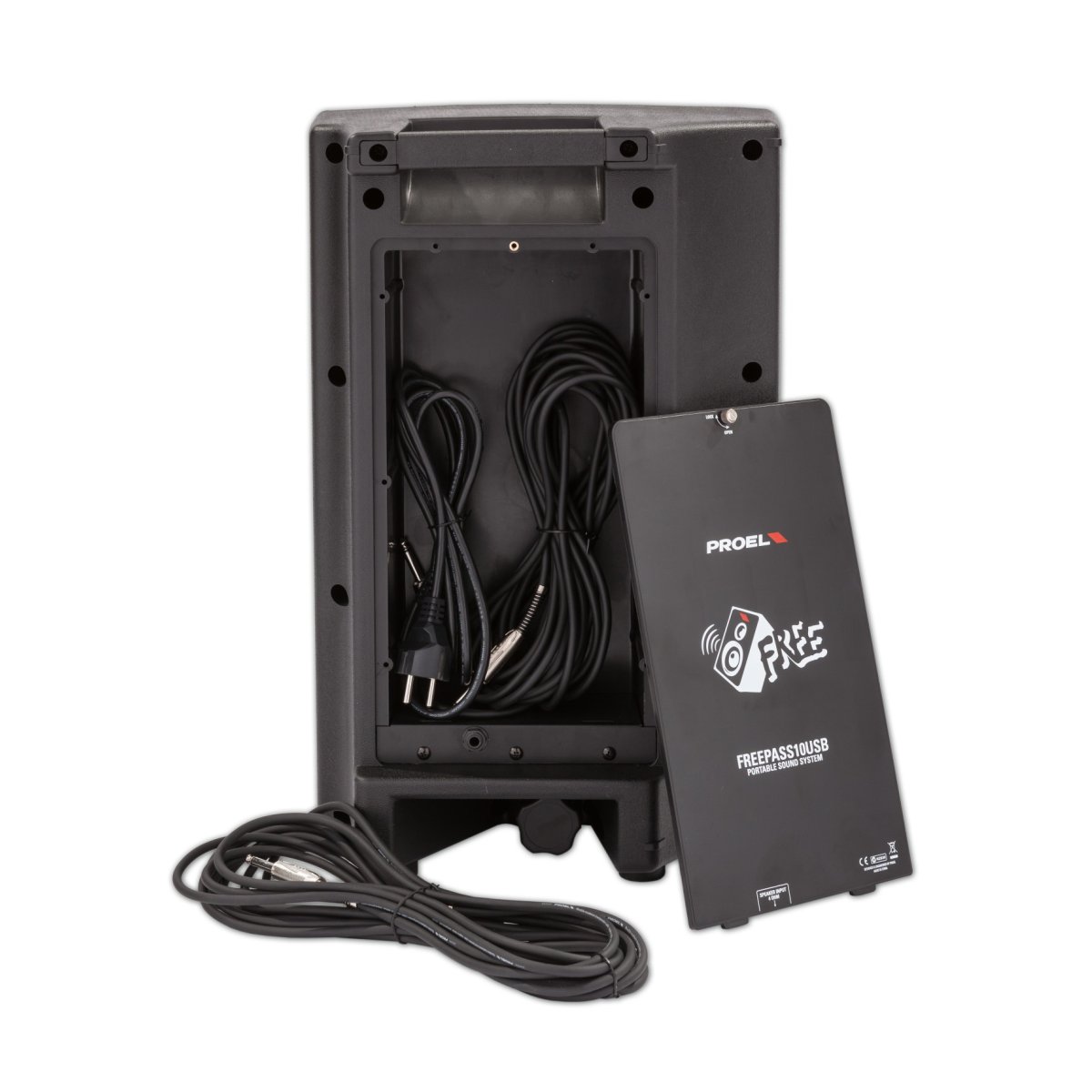

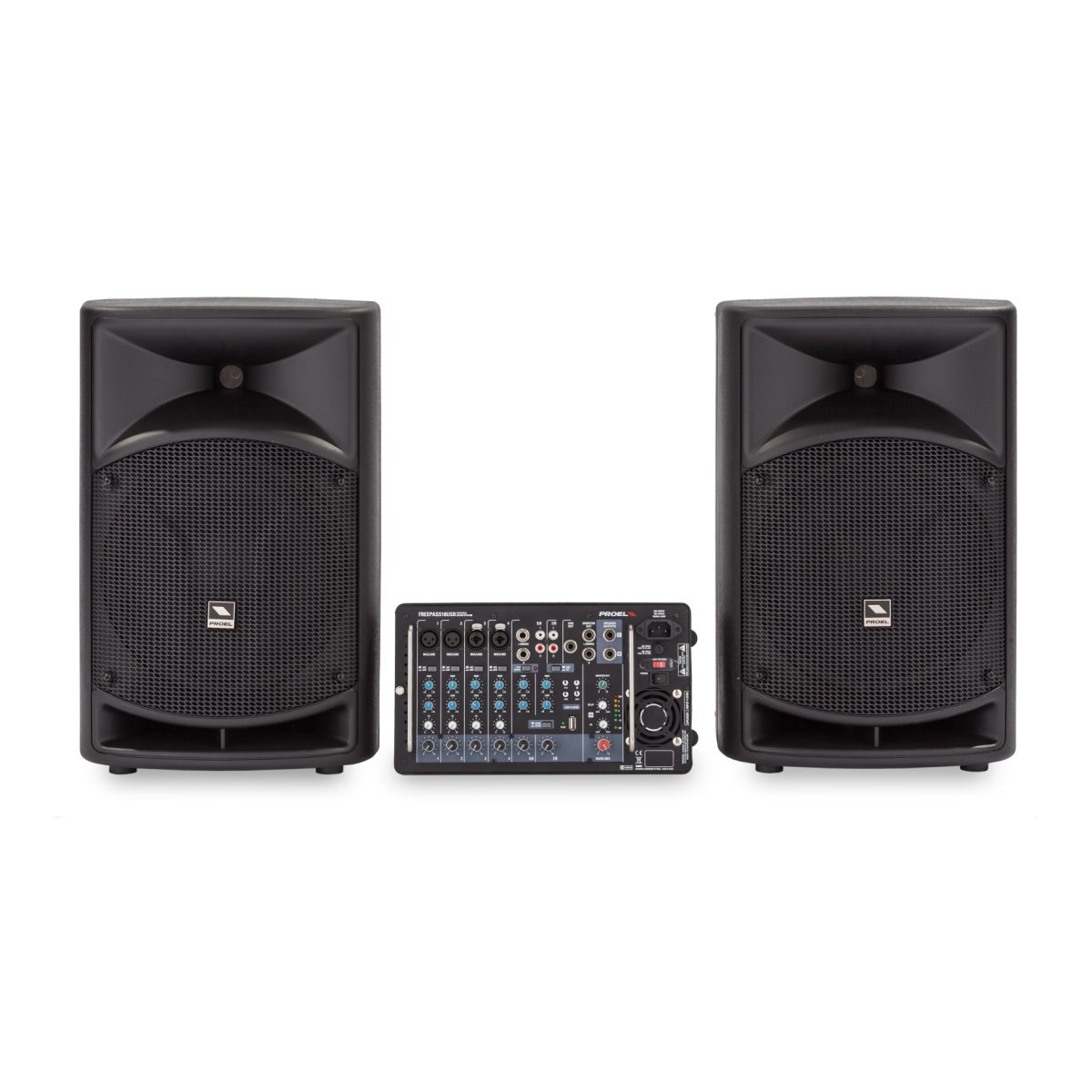

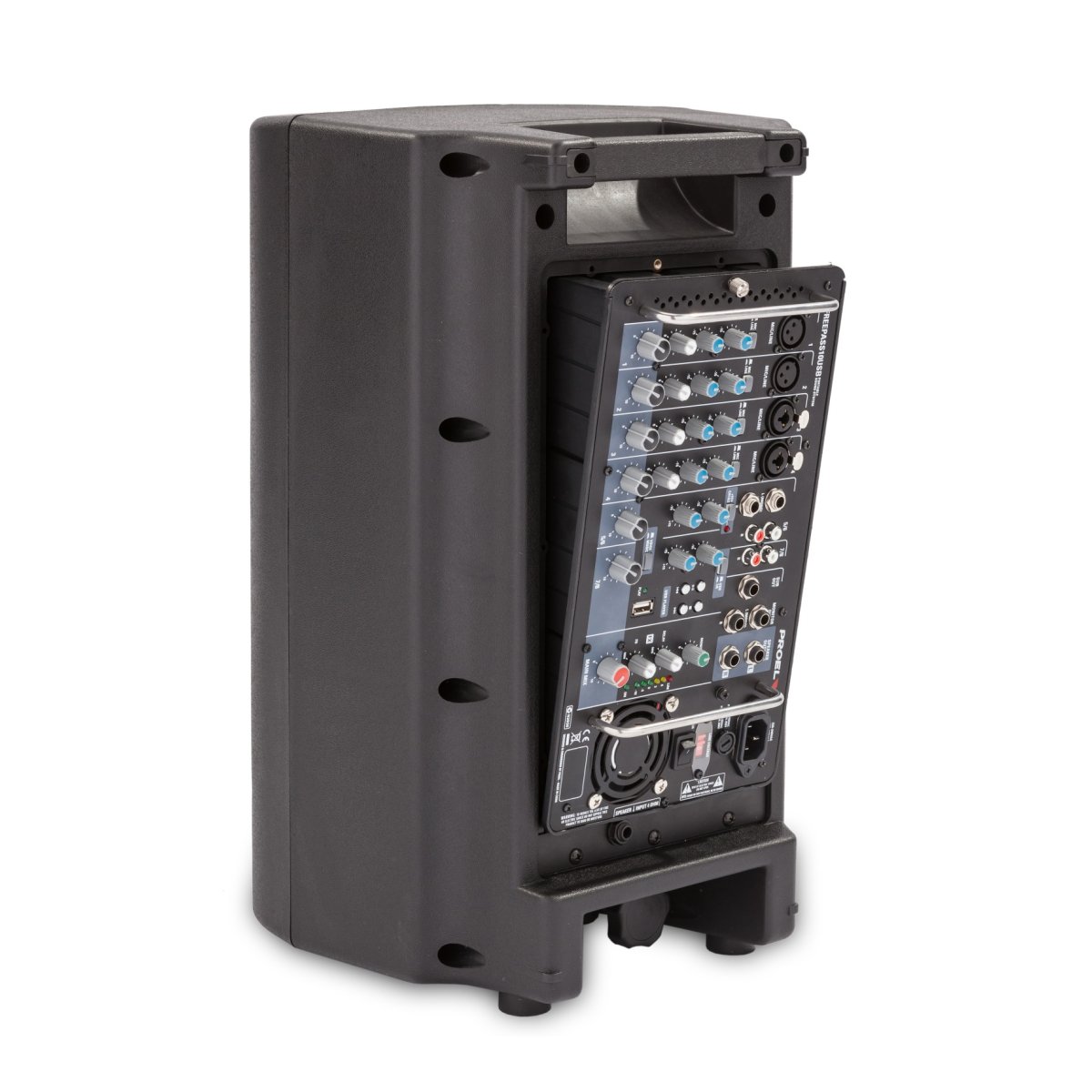

FREEPASS10USB is an all-in-one sound system combining in an ultra-portable, easy-to-use package everything musicians and other PA users need for playing: a full-featured mixer, a versatile MP3 player, a powerful CLASS D amplifier, two full-range speakers and high quality connection cables. FREEPASS10USB is a complete PA system that, even if compact in size, quick to setup and simple to use, is packed with a full set of features and delivers an unexpected sound quality for this kind of systems. The 8-channel, 2x250W powered mixer fits perfectly in one of the two speakers and it can be used as it is or detached with a simple operation. The second speaker includes a convenient and large compartment that can contain all the connection cables and other accessories. Two high-quality PROEL speaker cables with ultra-durable 1/4” metal jack connectors are also provided. The two speakers, hosted in lightweight PP cabinets, feature a horn-loaded 1.35” VC compression driver and a 10” woofer, able to provide a clean and powerful full-range sound with high SPL. A large handle on top of the cabinet and a pole holder on the bottom make transport and installation quick and easy. Thanks to its versatility and portability, FREEPASS10USB can be used in a variety of applications, such has live gigs for singers or small bands, education and sporting events, seminars and presentations.

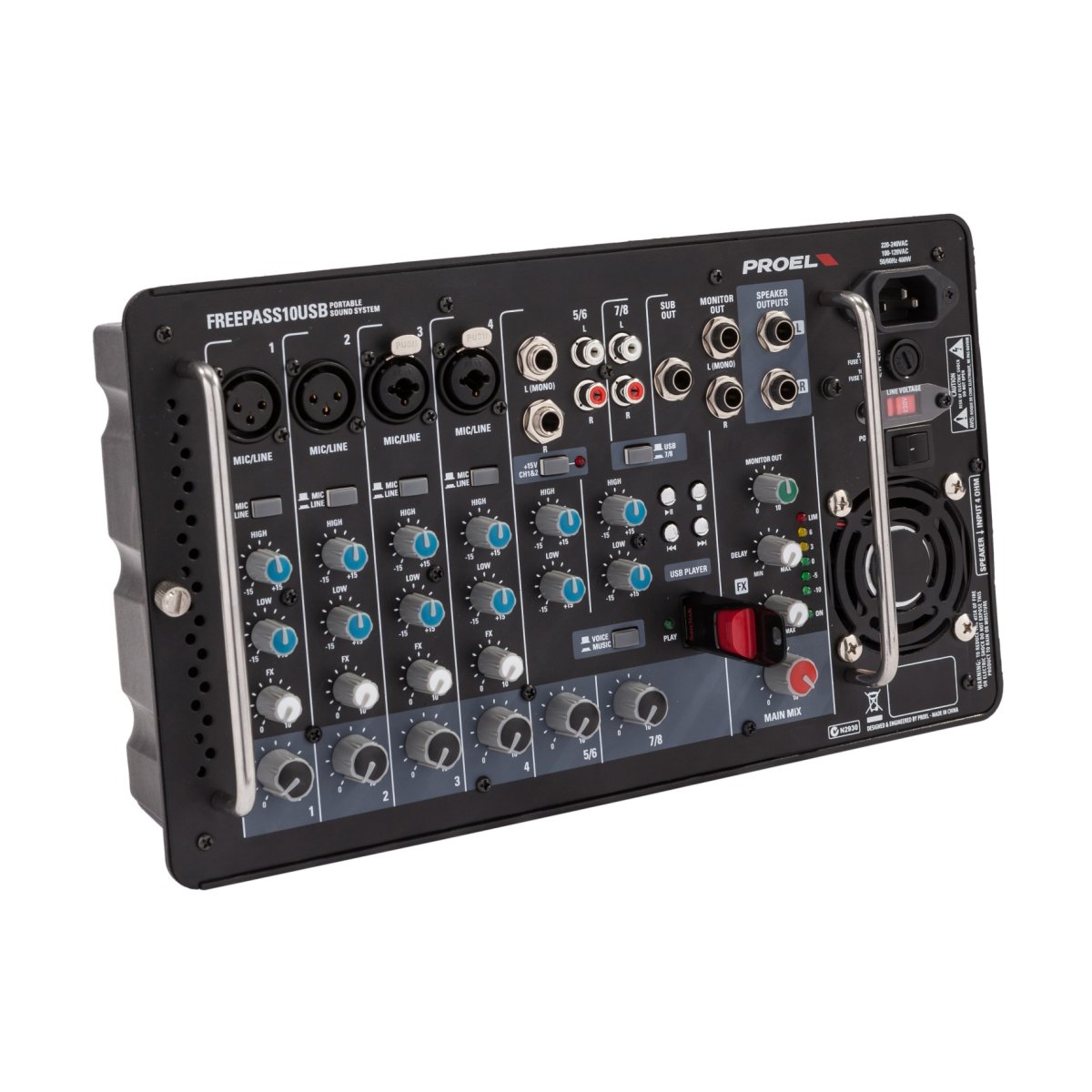

| MIXER Section | |
| MONO inputs | (4) MIC/LINE IN (COMBO) |
| STEREO inputs | (2) STEREO LINE IN (2xJACK / 2xRCA) |
| Input EQ | HIGH: +/-15dB 10 kHz, LOW: +/- 15dB 100 Hz |
| PHANTOM power | + 15 V (CH 1-4) |
| Internal Effect | ECHO (CH 1-4) |
| Outputs | MONITOR OUT (2xJACK), SUB OUT (1xJACK), SPEAKER OUT (2xJACK) |
| Main EQ | VOICE / MUSIC selector |
| Metering | 6-LED VU-METER |
| MULTIMEDIA Section | |
| Player Type | USB |
| Compatible File Formats | MP3 |
| Control Interface | Control buttons |
| AMPLIFIER Section | |
| Amplifier Type | Class D with SMPS (Switch Mode Power Supply) |
| Maxium Output Power | 2 x 250 W @ 4 ohm (1 KHz, 1% THD) |
| Frequency Response | MUSIC: 20 Hz – 20 KHz, VOICE: 80 Hz – 20 KHz |

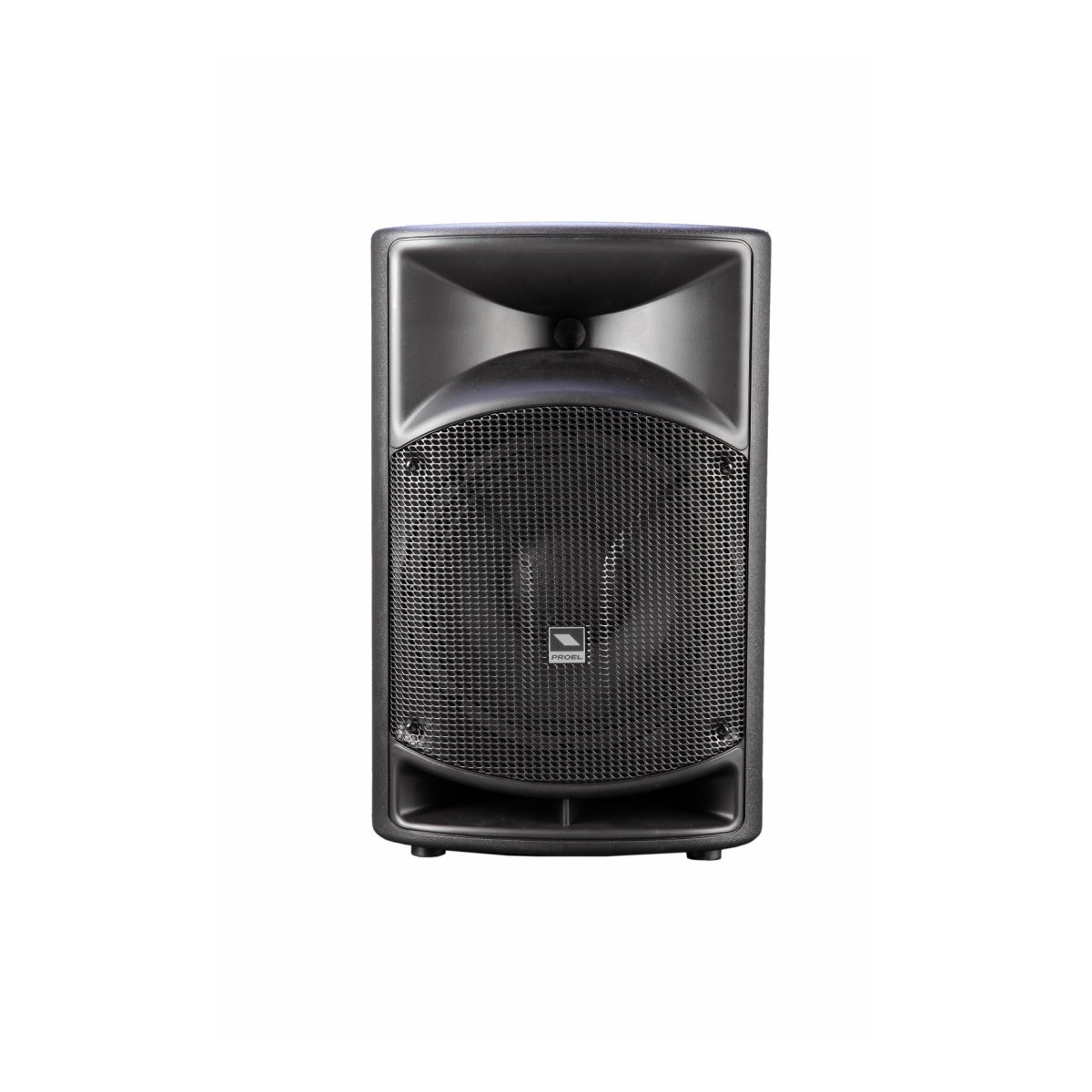

| LOUDSPEAKER Section | |
| Loudspeaker System | 2-way system vented |
| High Frequency Device | 1” compression driver 1.35″ VC – horn loaded |
| Low Frequency Device | 10” woofer with 2″ VC |
| Angular Coverage | 90° H x 60° V |
| Impedance | 4 ohm |
| Frequency Response | 65 Hz – 20 kHz (-10 dB) |
| SPL 1W 1m | 95 dB |
| Construction | Black polypropylene, metal grille |
| Handles | 1 top |
| Pole Holder | 1 bottom |
| GENERAL Specifications | |
| Dimensions (WxHxD) | Speaker: 32x50x29 cm / Mixer: 32x18x9 cm |
| Weight | System: 25 kg / Speaker: 10.6 kg / Mixer: 2.4 kg |
| Power Supply | 230/115 VAC (switchable) 50/60 Hz |
| Power consumption | 400 W |
