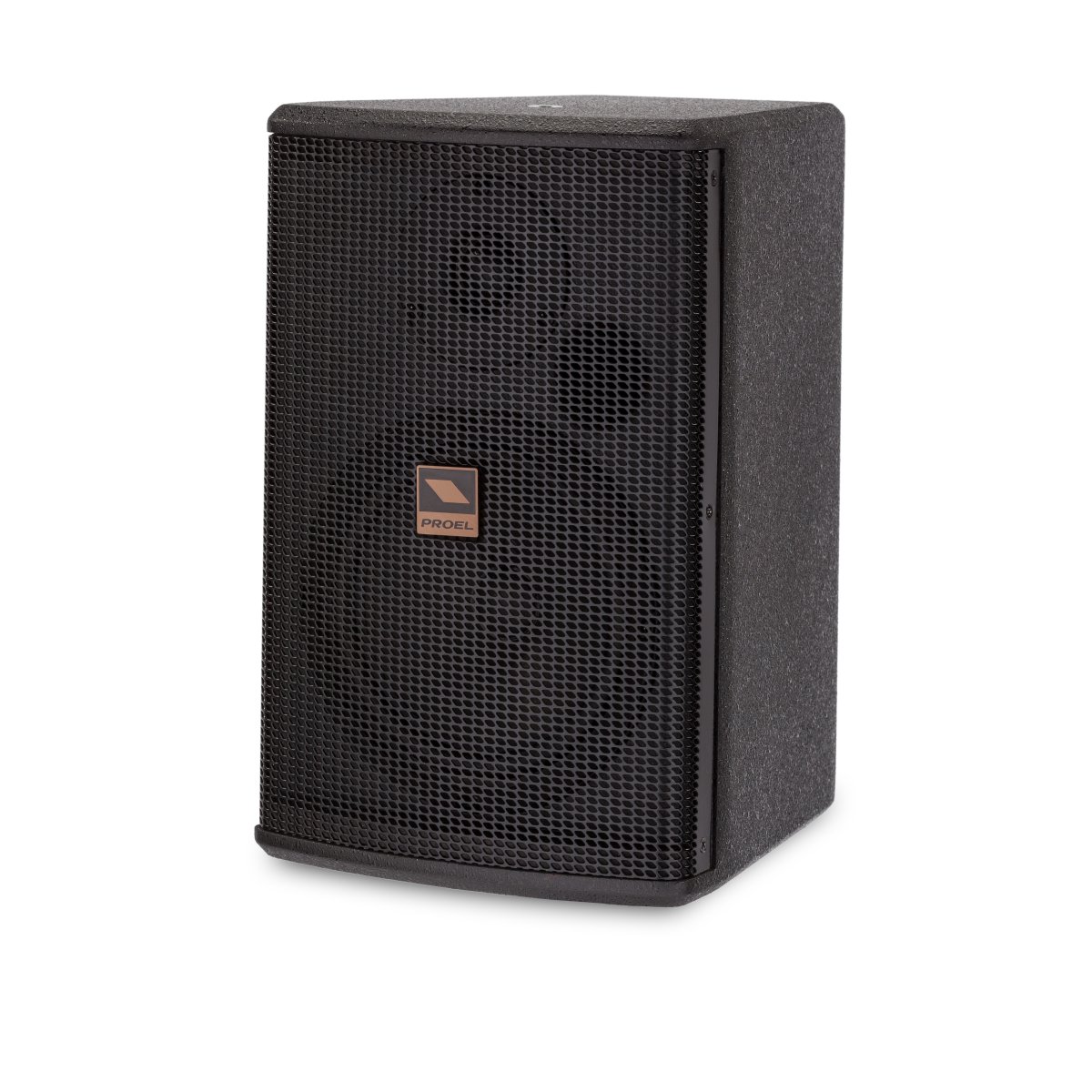

LT6P

Passive 2-way loudspeaker systems

The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package. For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service. The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience. For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion. The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses. The LITE Series includes 4 passive models, featuring carefully designed crossover filters with HF electronic protection. The choice of black or white cabinet, built-in flying points and a wide range of accessories make them suitable for any kind of fixed installation.

  • 1” neodymium tweeter
  • 6.5” woofer with 1” VC
  • 75W continuous power rating
  • Frequency response 75 Hz – 20 kHz
  • MDF cabinet
  • 3 x M4 flying points
  • Speaker stand adapter included (except LT6P white)
  • Available in BLACK and WHITE

Technical Specifications


System type: 2-way vented enclosure
High Frequency Device: 1″ neodymium tweter
Low Frequency Device: 6,5” woofer with 1” VC
Angular Coverage: 90° H x 60° V
Power Rating Continuous: 75 W
Power Rating Program: 150 W
Power Rating Peak: 300 W
Impedance: 8 ohm
Frequency Response: 75 Hz – 20 kHz
SPL (1w / 1m): 88 dB
Connectors: 2 x SPEAKON, 2 x JACK
Flying System: 1 x M4 top / 2 x M4 bottom /2 x M5 rear
Construction: Plywood
Cabinet Colour: Black
Dimensions (W x H x D): 204 x 295 x 223 mm
Weight: 4.9 kg / 10.8 lbs.
