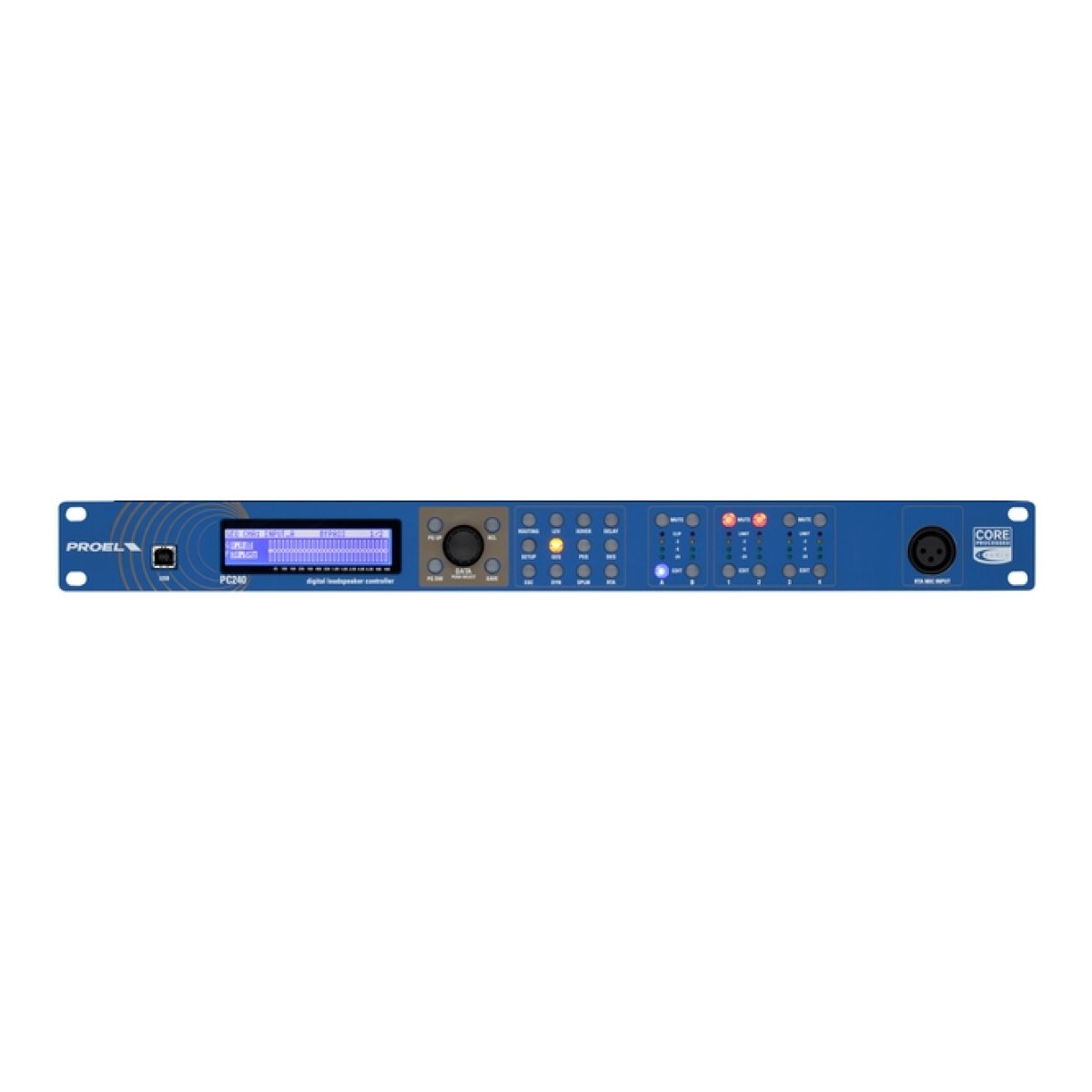

PC240

2 inputs /4 outputs digital signal processing unit with RTA and SPLM

The new Proel PC240 and PC260 processors, based on the C-Audio Core DSP platform, allow audio signal processing capable of optimizing system performance using advanced functions and an intuitive user interface with direct access to all editing functions and remote control. The incorporated technology exhibits some interesting features, like programmable sound pressure level management (SPLM), thanks to the use of an internal clock, and full remote control of all functions from a connected PC. PC240 and PC260, both with a full range of functions, each have 2 inputs – with AES digital inputs in the case of the PC260 – and 4 or 6 outputs, respectively. Each input offers a 5-band, fully parametric EQ, 28 bands of graphic EQ, and three bands of powerful and versatile dynamic equalization. Each includes a fully programmable compressor/limiter and up to 600 ms of delay, as well.
Find a Dealer

Technical Specifications

[Power Supply: 90V – 220V AC, 50 – 60 Hz ]
[Connectors: USB, RTA MIC]

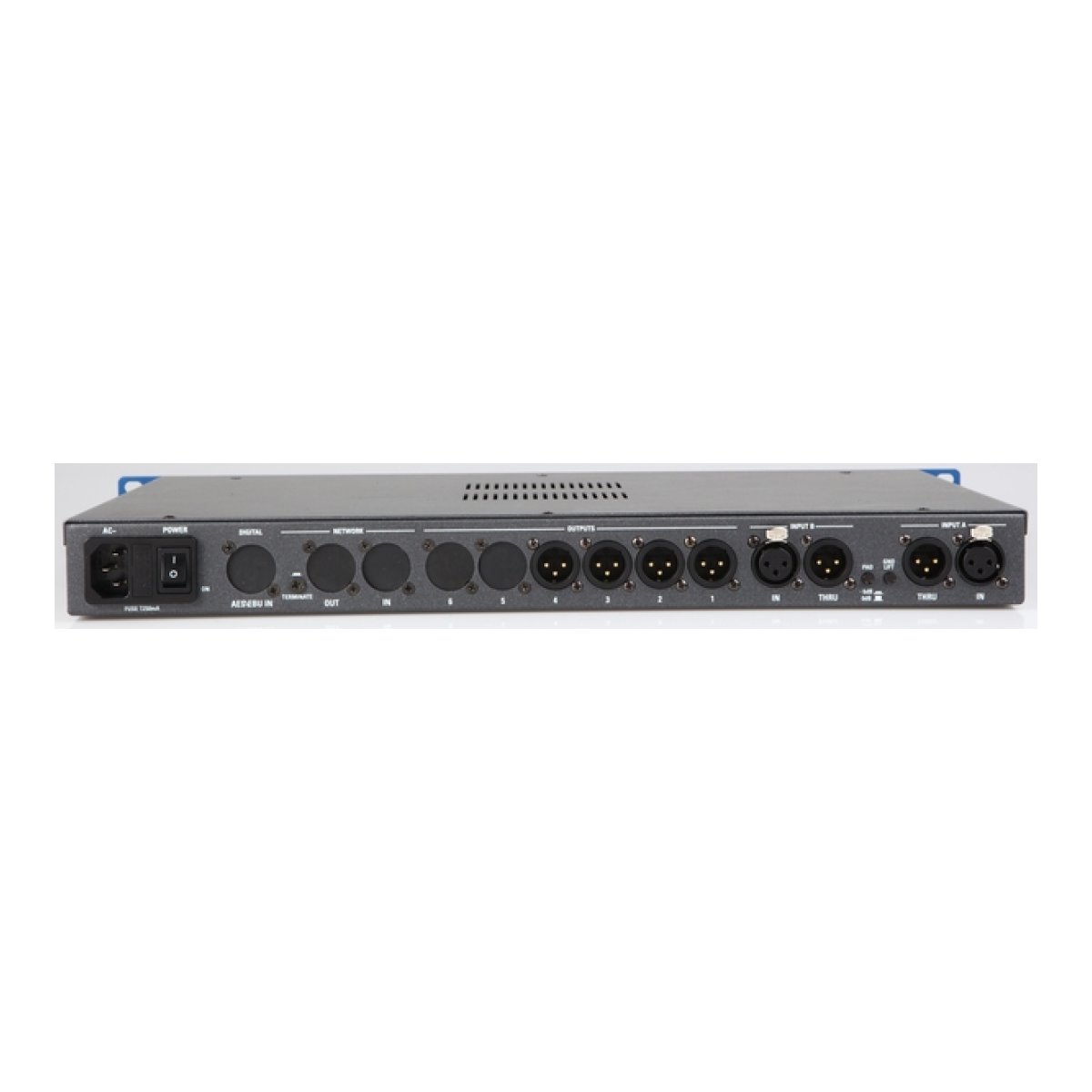

[Input Connectors: 3 pin XLR female + 3 pin XLR male ]
[Output Connectors: 3 pin XLR male]
[AD/DA converters: 24 bit – 96 kHz]
[Dimensions (W x H x D): 44 x 482 x 295 mm]
[Distortion (THD): < 0.015% @ 1kHz, +18dBu]
[Parametric Equalization: 5 per input / 5 per output
Parametric, Notch, Shelf, Bandpass, res. hp/lp, Allpass
+15 dB to -15 dB in 0.2 dB steps
0.4 to 28.85 (3 to 0.05,1/20 oct. steps)
15.6 Hz – 22.62 kHz (1/20 oct. steps)
±15 dB in 0.2 dB steps]
[Crossover Filters: 6/12/18/24/48dB per octave
Bessel / Butterworth / Linkwitz-Riley]
[Sampling Frequency FS: 48 kHz]
[Output Gain: +15 dB to –30 dB in 0.2 dB steps and mute]
[Input Impedance: >10 kohm]
[Indicators (LED): Input metering 2 x 4 LED
Output Metering 4 x 4 LED]
[Inputs: 2 electronically balanced]
[Maximum Input Level: +20 dBm on 600 ohm]
[Weight:4 lb ]
[Internal Processing: 40 bit floating point]
[S/N Ratio: >110 dB, 20 Hz – 20 kHz, unweighted]
[Frequency response: + 0.5 dB 20 Hz – 20 kHz]
[Display: Display 192×32 LCD Graphic Display]
[Limiter threshold: +0 dB to -35dB]
[Limiter Attack Time: 1 to 100 ms
Compressor mode Ratio= 20 to 1 : 1 Knee= Hard – Soft1 – Soft2]
[Limiter Release Time: 0.50 s to 1 s]
[Delay: Up to 600 ms in 0.021 mS steps

1.68 ms (analogue in – analogue out @ 48 KHz)]
[Rack Units: 1U]
[Outputs: 4 electronically balanced]
