V PRO series is the ultimate evolution of the acclaimed V series of PROEL powered loudspeakers. The V PRO features now a totally new pre-amp section including an advanced processing with high-performance DSP engine, for a very smooth response and a high-definition sound. The possibility to select the 5 different EQ presets allows to adapt the system response to the different applications with a touch of your fingers. These ultra-portable speakers combine, in carefully engineered and light-weight cabinets, the clearest and most accurate PROEL sound with Class D Amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price point. The four models, V8PRO, V10PRO, V12PRO and V15PRO, feature a new extremely efficient amplifier module capable of delivering 600 W of robust power to the transducers. Thanks to the use of SMPS technology, this power comes in an ultra-lightweight package, making the V PRO the most portable PROEL speakers ever.

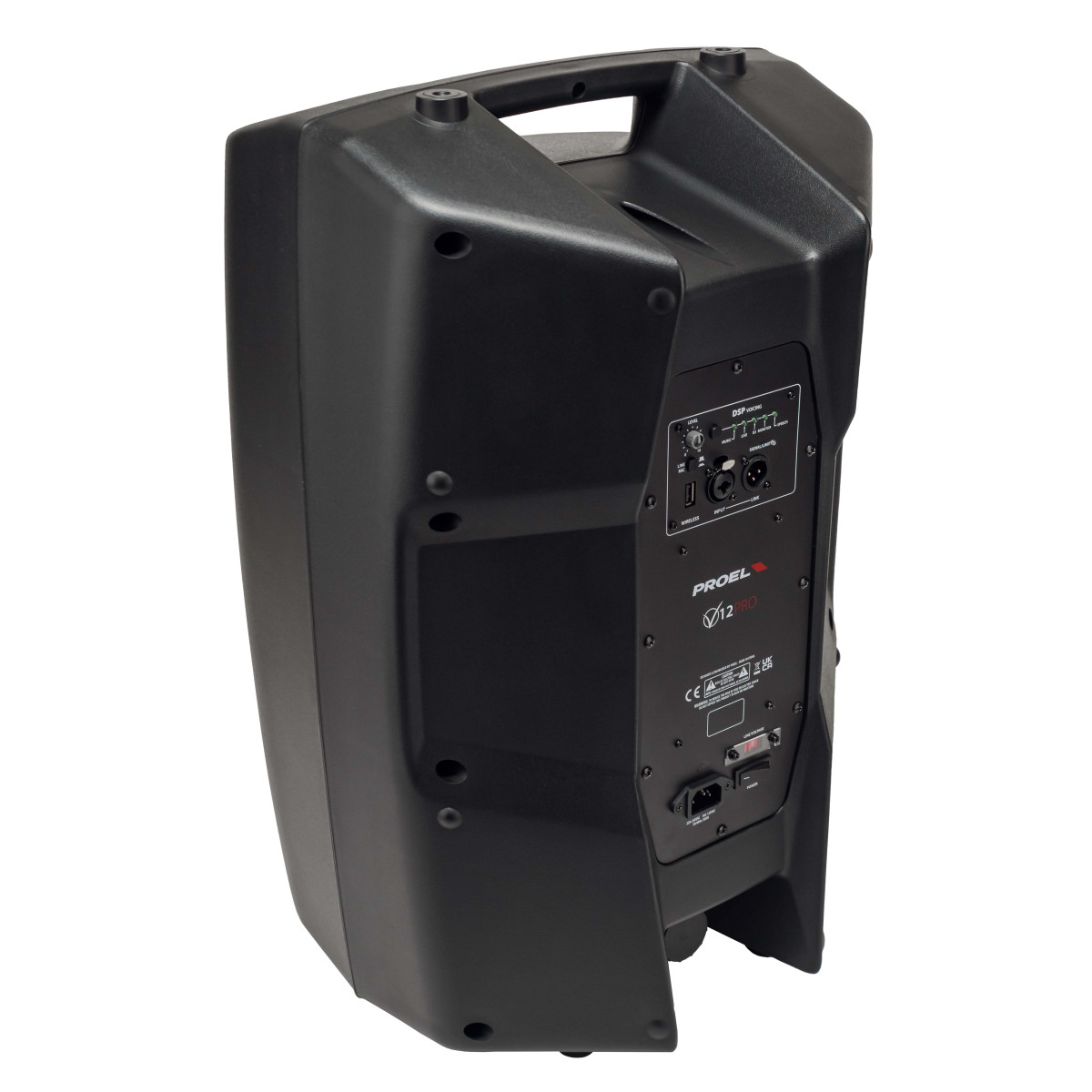

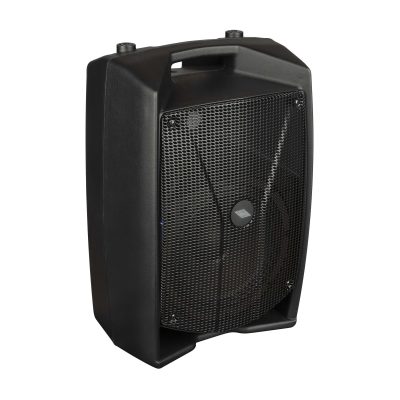

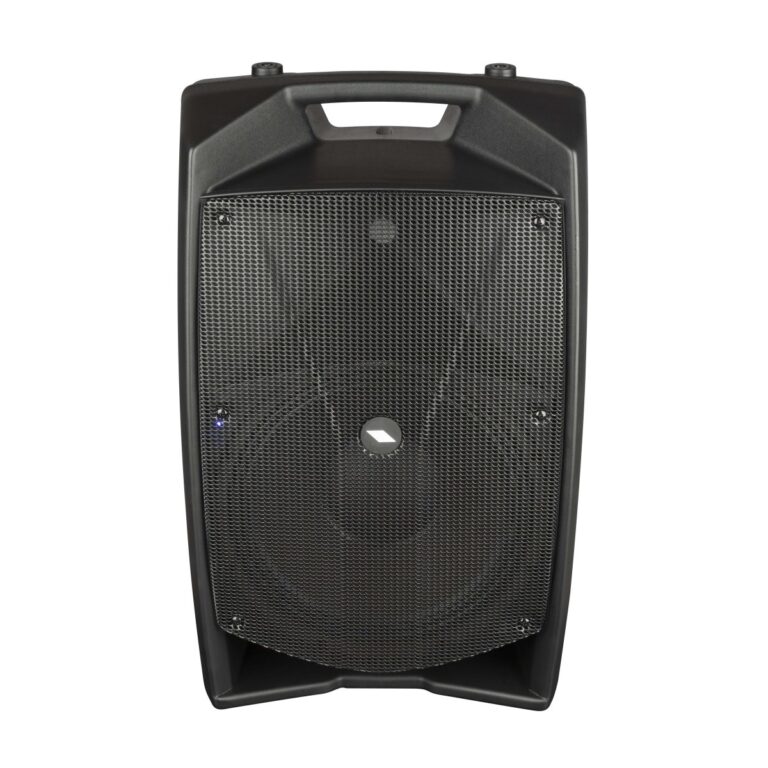

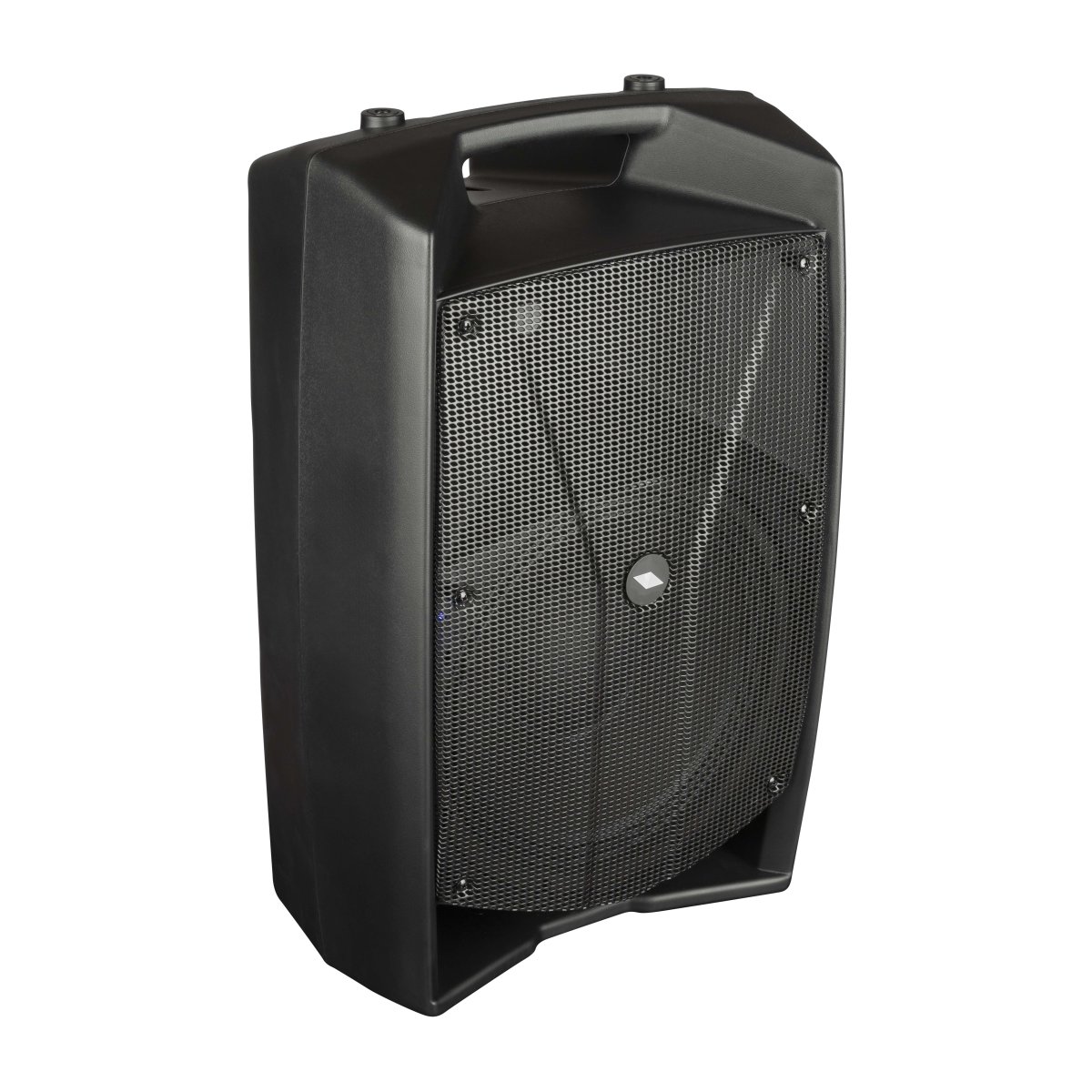

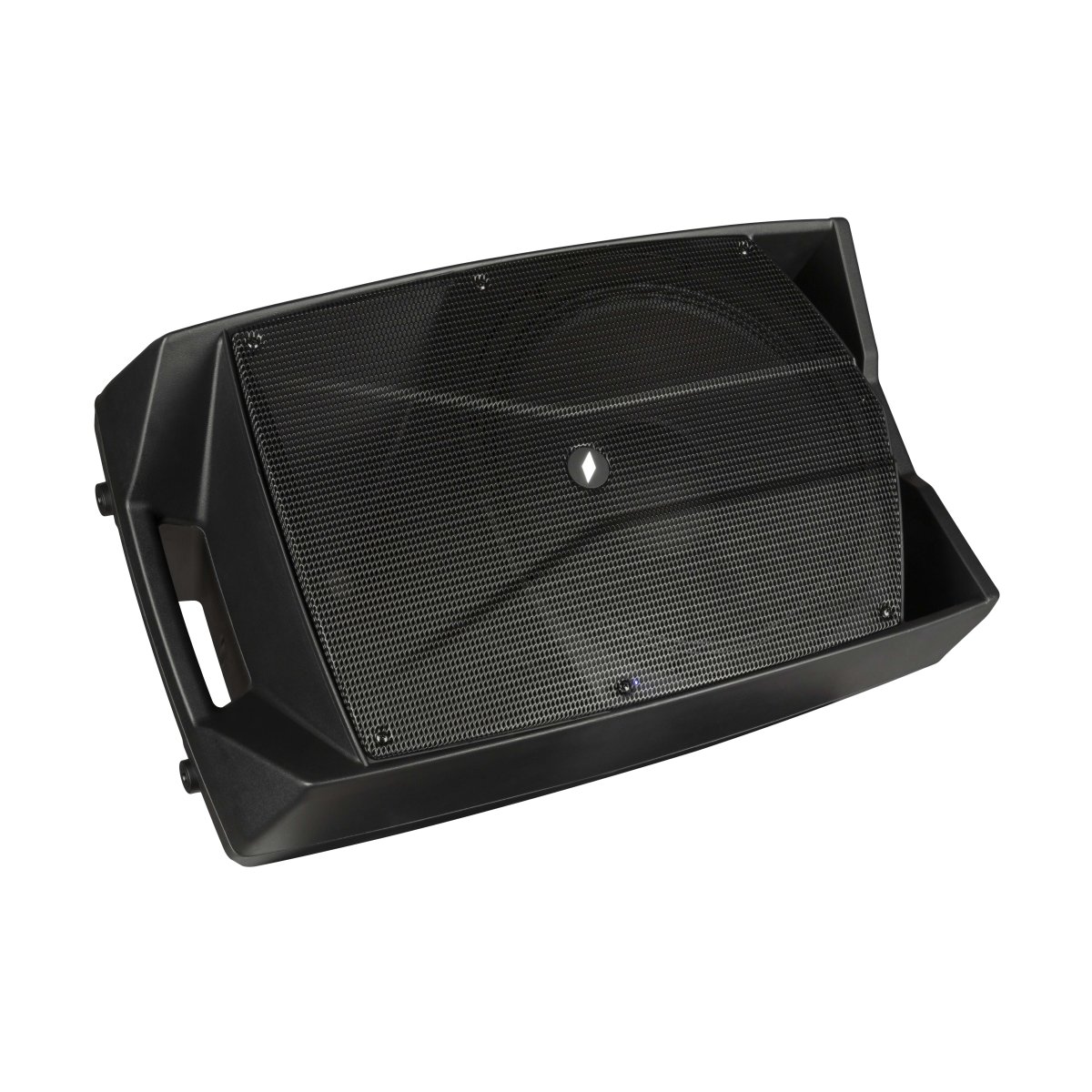

The V PRO cabinets, expression of the most advanced Italian design, include a super-comfortable luggage-style top handle for an effortless portability. The slanted shape allows the speakers to be laid on their side and used also as stage monitors.

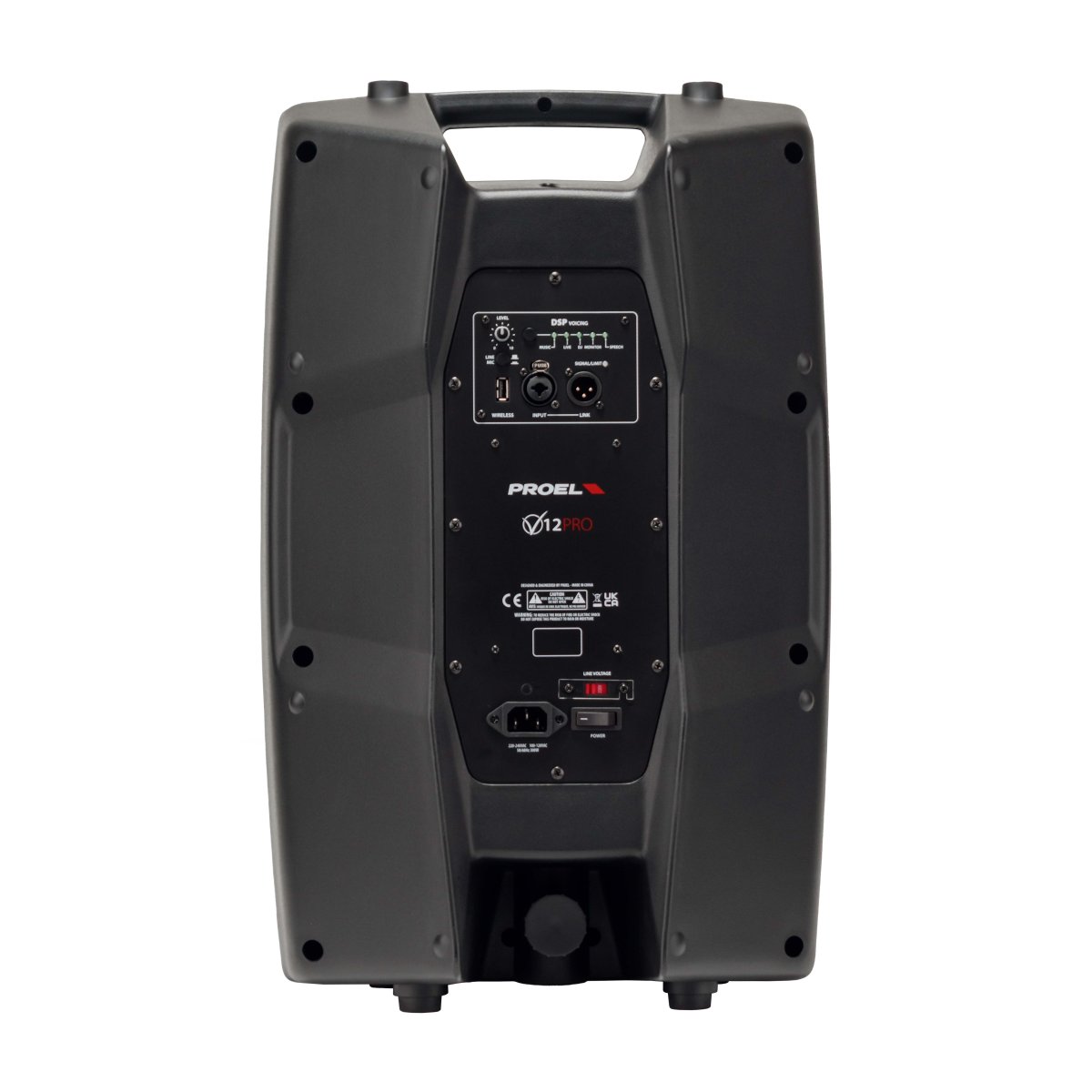

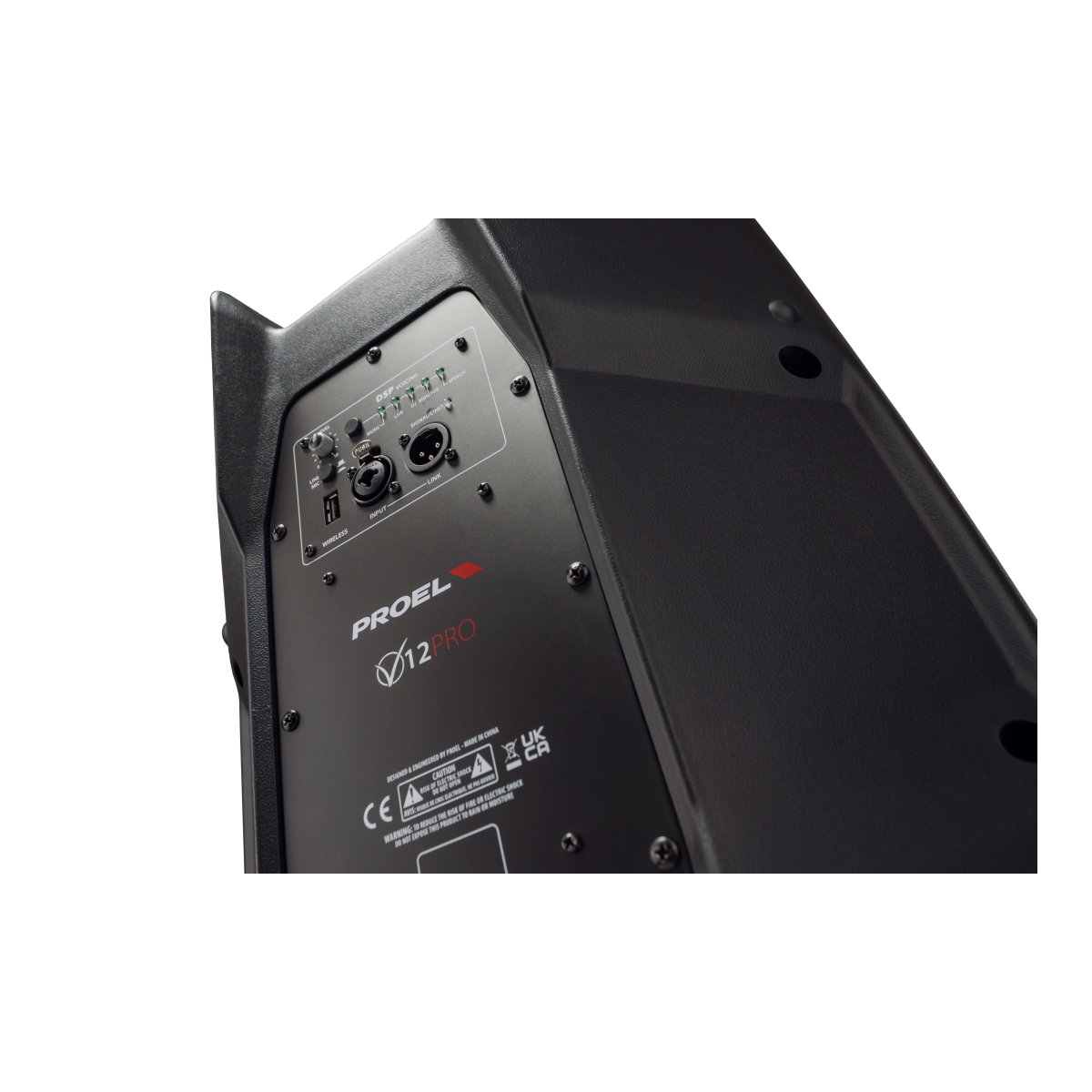

Thanks to the MIC/ LINE input and the WIRELESS USB input for the use of PROEL U24 microphone systems, the V PRO can be used in a variety of applications without external equipment.
| System type | 2-way vented enclosure | ||
| High Frequency Device | 1’’ neodymium compression driver | ||
| Low Frequency Device | 12” woofer with 2.5″VC | ||
| Angular Coverage | 90° H x 60° V | ||
| Total peak power | 600 W | ||
| HF Amplifier Cont. Power | 50 W Class AB | ||
| LF Amplifier Cont. Power | 250 W Class D | ||
| Power Supply type | SMPS | ||
| Frequency Response | 50 Hz – 20 kHz | ||
| Processing | DSP | ||
| Preset | MUSIC, LIVE, DJ, MONITOR, SPEECH | ||
| Max SPL at 1mt (peak) | 124 dBspl | ||
| Crossover Frequency | 2000 Hz | ||
| Input Impedance | 30 kohm balanced / 15 kohm unbalanced | ||
| Input Sensitivity | LINE: +4 dBu / MIC: -30 dBu | ||

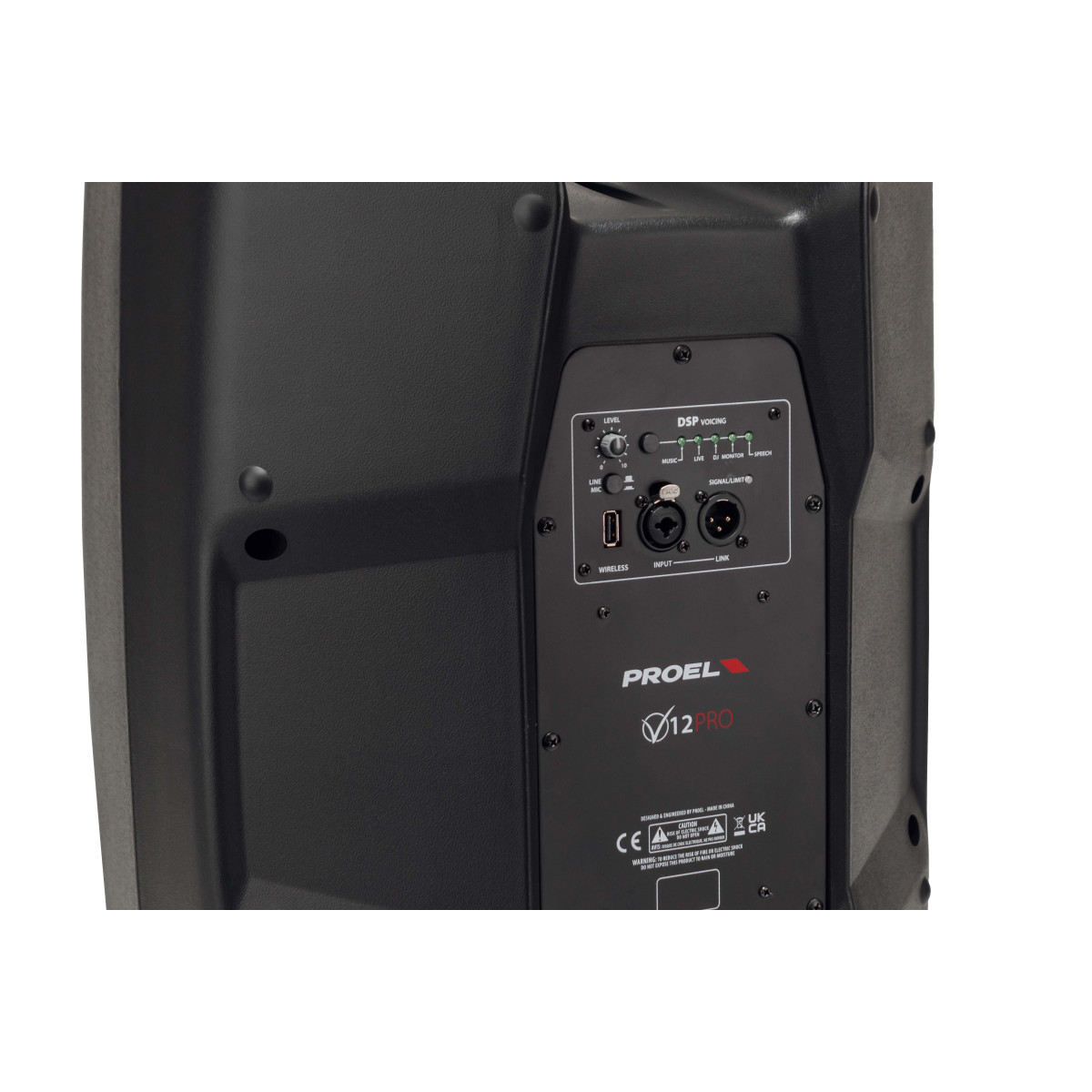

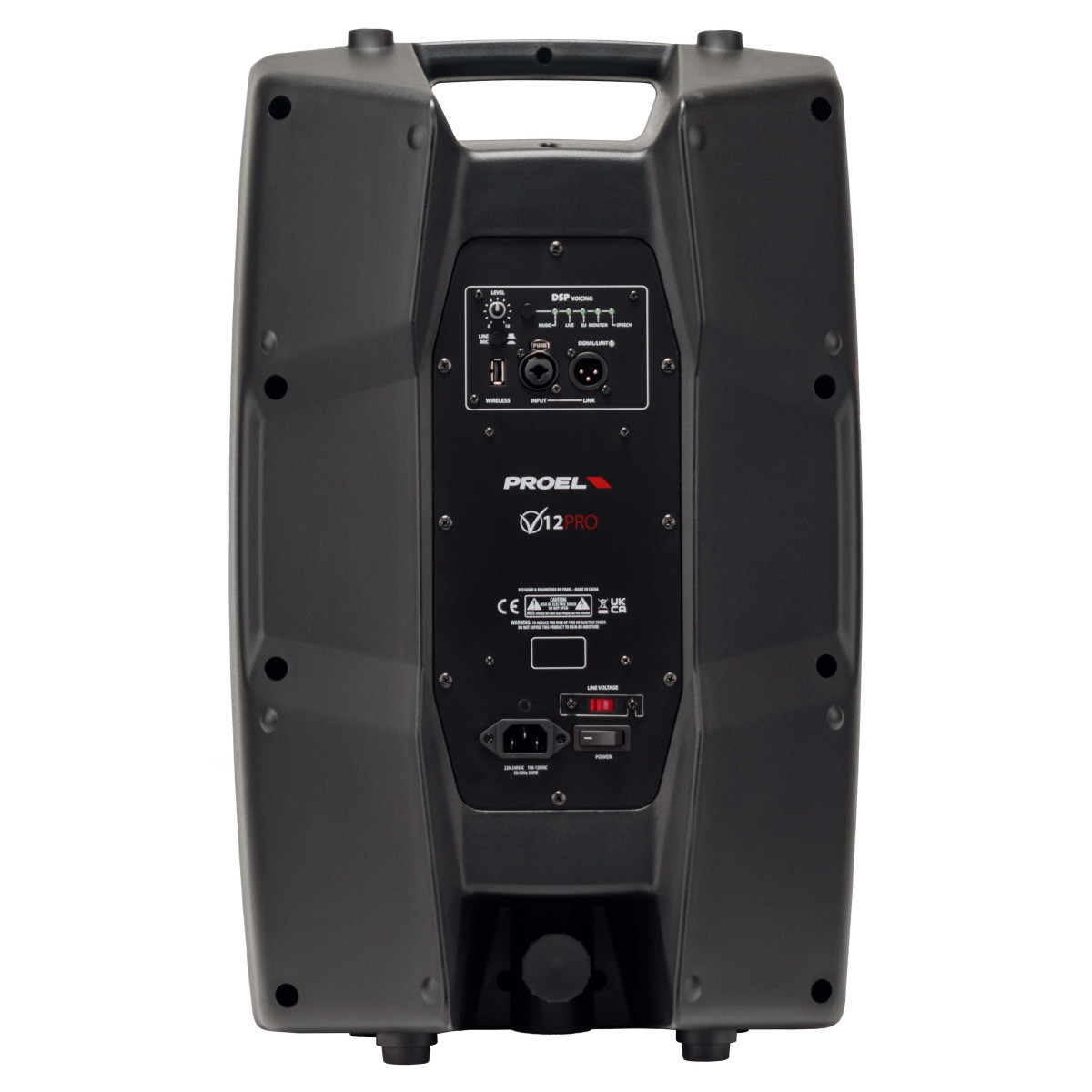

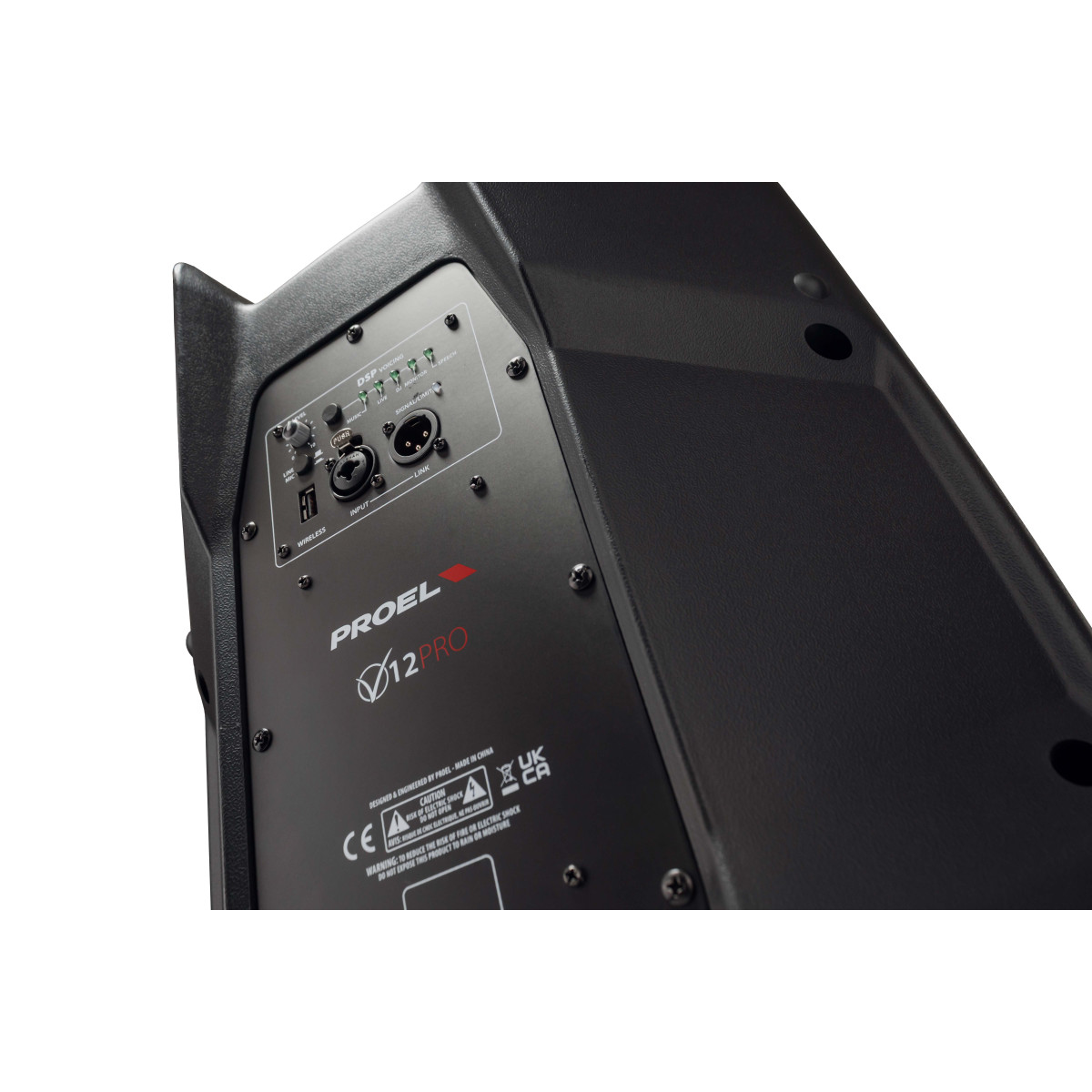

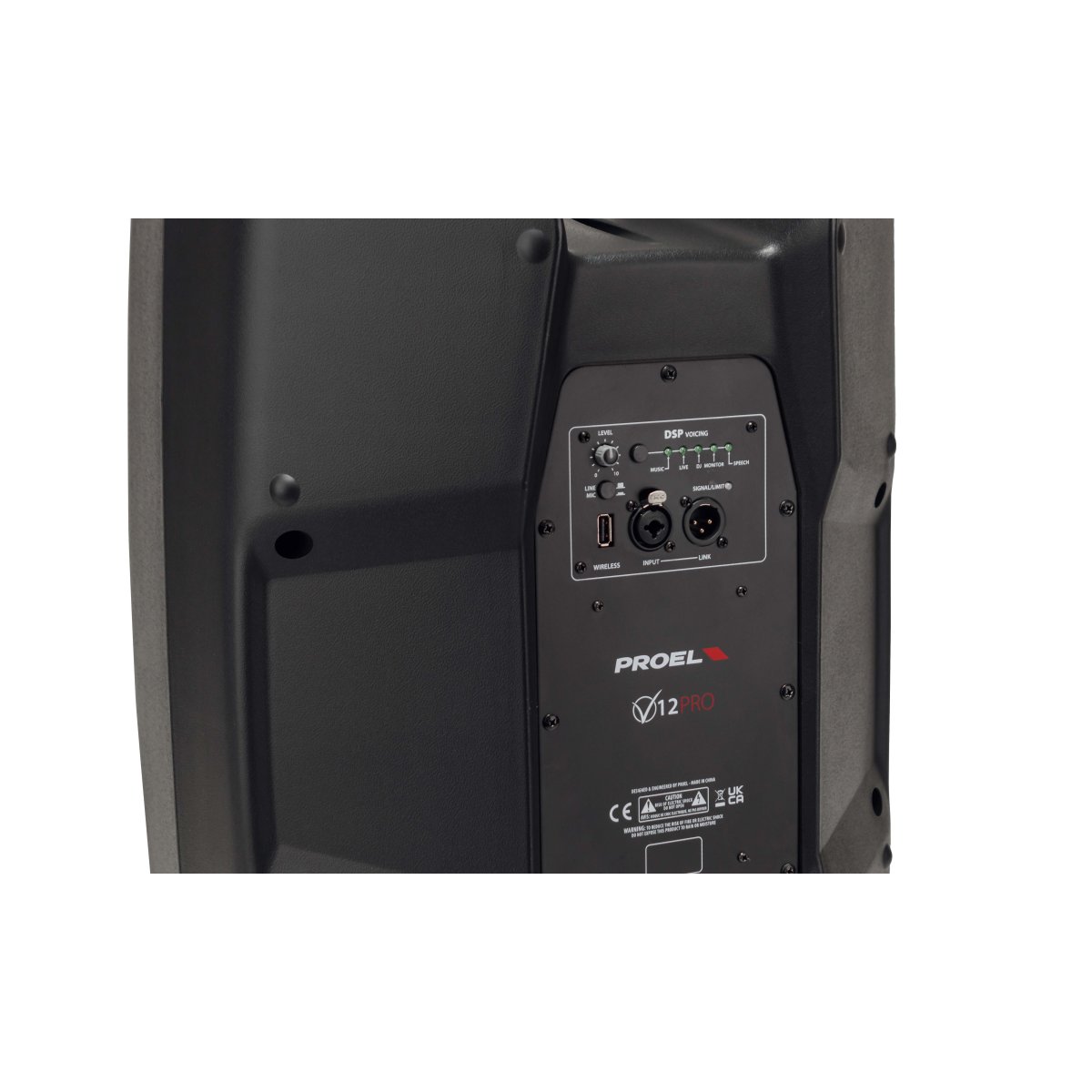

| Controls | MIC/LINE, DSP VOICING, LEVEL | ||
| Connectors | MIC/LINE: Combo XLR-F / JACK LINK: XLR-M WIRELESS MIC (U-24H or U-24B) | ||
| Power Supply | 220-240 V~ or 100-120 V~ 50/60 Hz with voltage selector | ||
| Rated Consumption* | 300 W | ||
| Construction | Polypropylene | ||
| Cabinet Colour | Black | ||
| Flying System | 4 x M10 top/bottom | ||
| Handles | 1 x top | ||
| Mounting Pole | 1 x bottom | ||
| Monitor taper | 44° | ||
| Weight | 12.8 Kg (28.2 lb) | ||
| Dimensions (W x H x D) | 380 x 600 x 328 mm | ||
| * Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program. | |||
