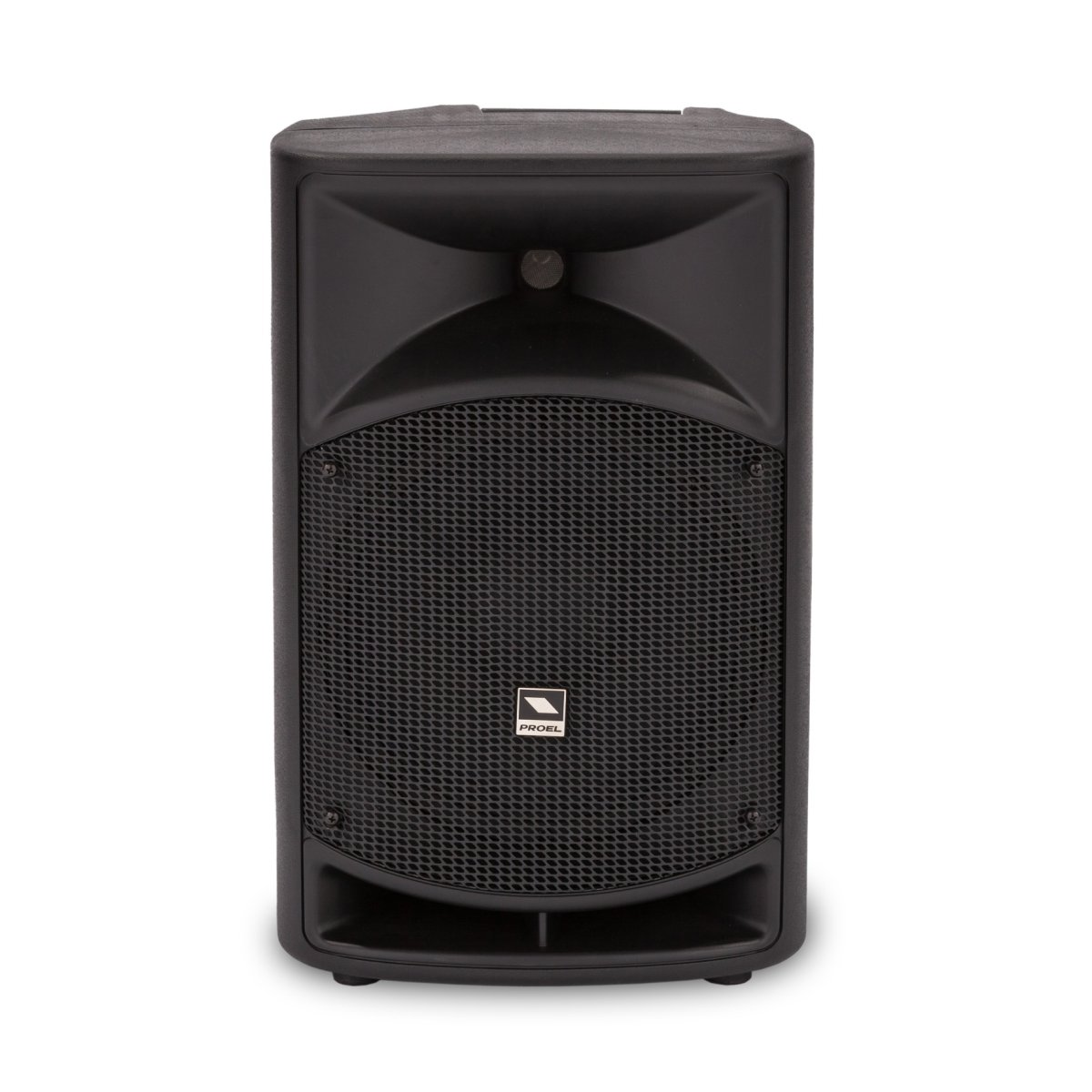

In response to the increasing request for compact PA systems, PROEL introduces the WAVE series, a range of passive speakers hosted in lightweight yet ultra-durable polypropylene cabinets and combining combine selected HF and LF transducers with state of the art crossover filters. The three models of the WAVE series can be used in a variety of applications, ranging from speech diffusion and music playback to live music and DJ sets. The extremely versatile cabinets can be mounted on standard speaker poles, laid on the side for the use as stage monitors and even suspended using the built-in flying points.
| System type | 2-way vented enclosure |
| High Frequency Device | 1” compression driver with 1” VC |
| Low Frequency Device | 10” woofer with 1.5” voice coil |
| Angular Coverage | 90° H x 60° V |
| Nominal Impedance | 8 Ω |
| Power Rating (continuous) | 150W |
| Power Rating (program) | 300 W |
| Power Rating (peak) | 600 W |
| Frequency Response | 70 Hz – 20 kHz |
| Sensitivity | 93 dB @ 1 W/1 m |
| Connectors | 2 x SPEAKON linked |
| Weight | 11 kg (24.2 lb) |
| Flying System | 2 x M8 – bottom |
| Construction | Polypropylene |
| Mounting Pole | 1 x bottom |
| Dimensions (W x H x D) | 320 x 500 x 290 mm |
In response to the increasing request for compact PA systems, PROEL introduces the WAVE series, a range of passive speakers hosted in lightweight yet ultra-durable polypropylene cabinets and combining combine selected HF and LF transducers with state of the art crossover filters. The three models of the WAVE series can be used in a variety of applications, ranging from speech diffusion and music playback to live music and DJ sets. The extremely versatile cabinets can be mounted on standard speaker poles, laid on the side for the use as stage monitors and even suspended using the built-in flying points.
| System type | 2-way vented enclosure |
| High Frequency Device | 1” compression driver with 1” VC |
| Low Frequency Device | 10” woofer with 1.5” voice coil |
| Angular Coverage | 90° H x 60° V |
| Nominal Impedance | 8 Ω |
| Power Rating (continuous) | 150W |
| Power Rating (program) | 300 W |
| Power Rating (peak) | 600 W |
| Frequency Response | 70 Hz – 20 kHz |
| Sensitivity | 93 dB @ 1 W/1 m |
| Connectors | 2 x SPEAKON linked |
| Weight | 11 kg (24.2 lb) |
| Flying System | 2 x M8 – bottom |
| Construction | Polypropylene |
| Mounting Pole | 1 x bottom |
| Dimensions (W x H x D) | 320 x 500 x 290 mm |
