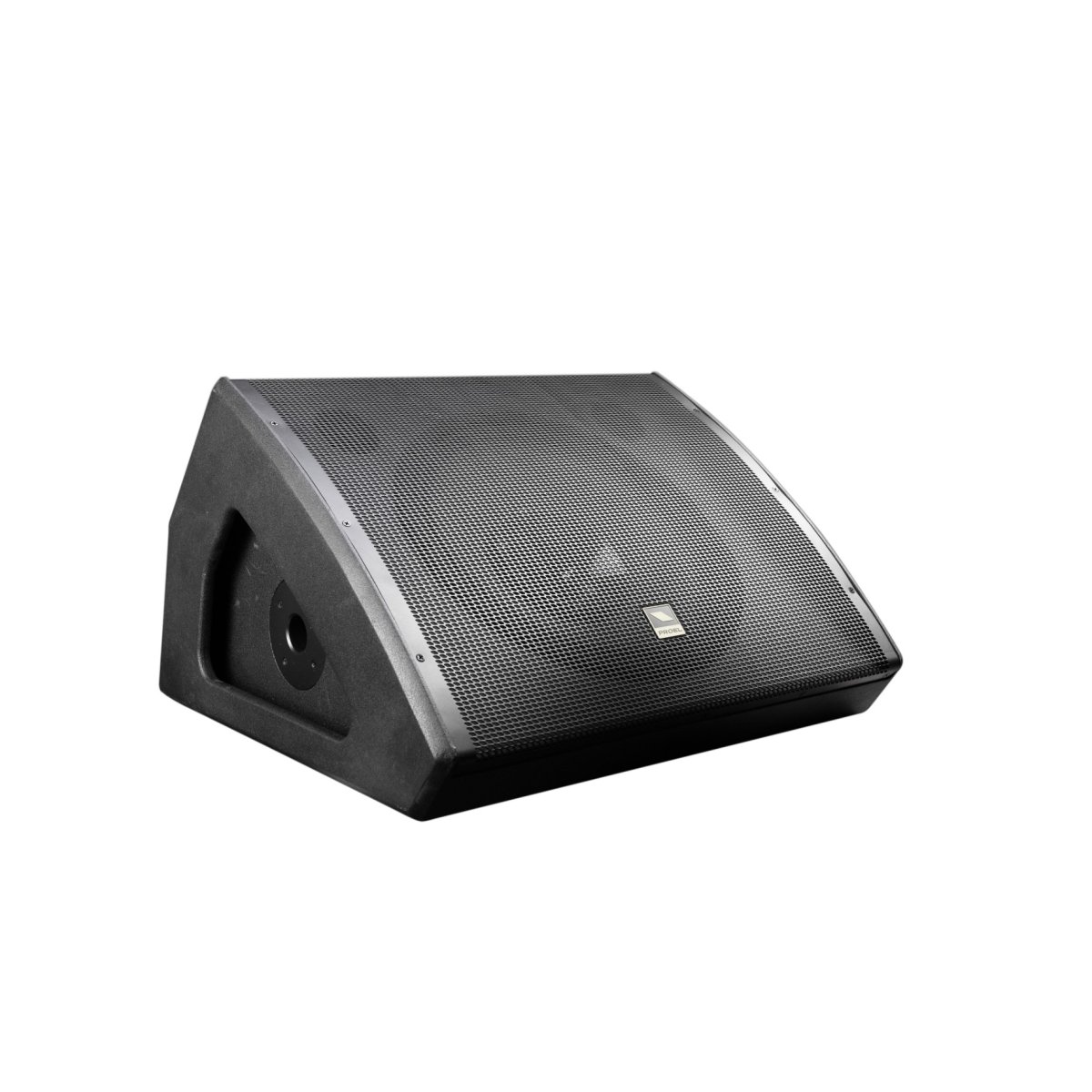

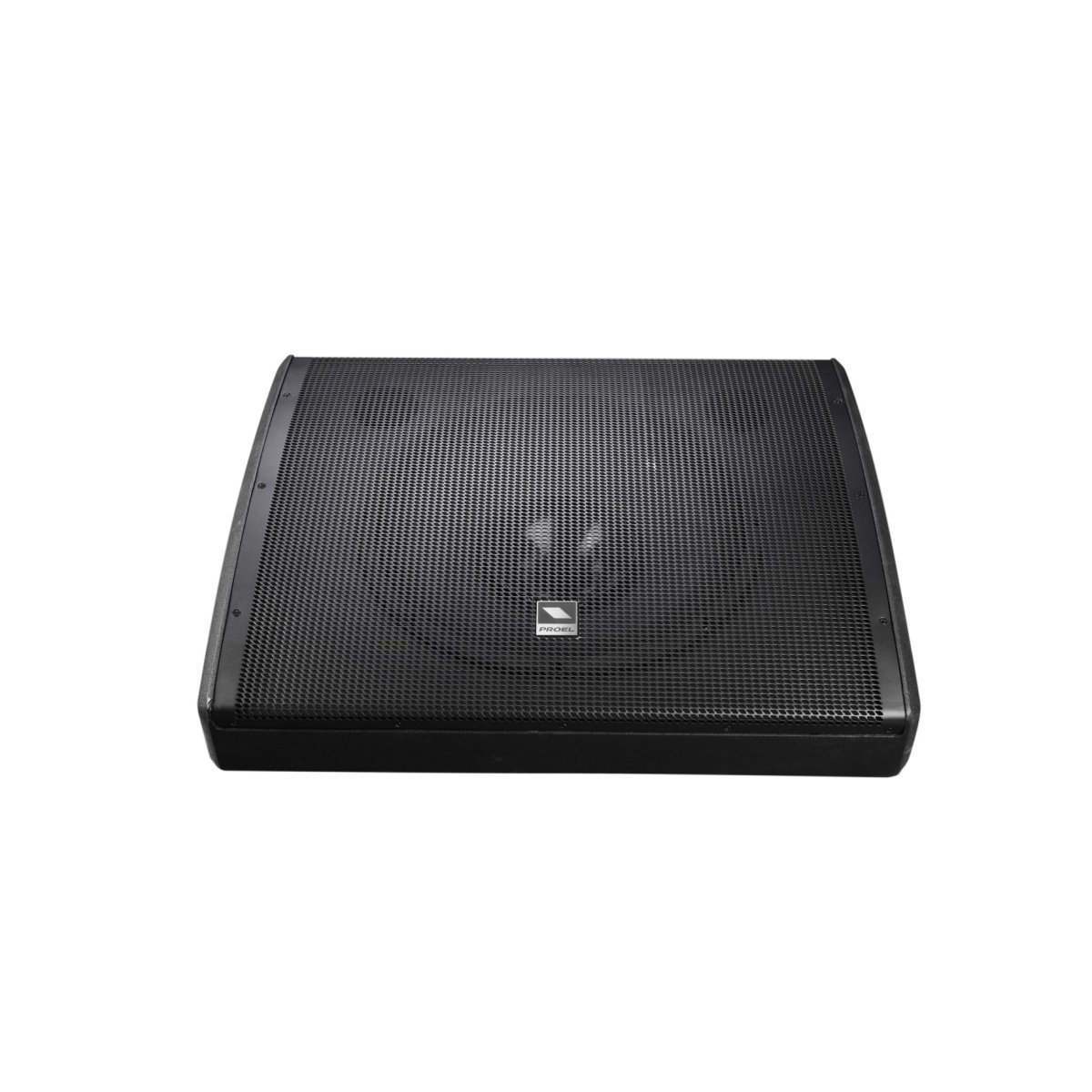

The WEDGE Series by PROEL is a range of stage monitors designed to offer not only to professional musicians and rental companies, but also to amateur musicians and non professional users, a highly valuable monitoring solution at a very affordable price.Each of the three WD models provides a perfect sound intelligibility and a high SPL in an extremely lightweight and portable enclosure. The coaxial transducers, designed under PROEL specifications, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also for the fact that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for a perfect listening from any position. The low-profile, stylish and unobtrusive cabinet, finished with scratch-resistant polyurethane painting, fits perfectly on any stage.WD15P, with its full extension and powerful and deep response at the low frequencies, is the ideal monitor for bass and drums players. The horn-loaded HF section and the powerful amplifier make it the perfect solution for monitoring also in very large stages.
System type | 2-way coaxial vented |
Low Frequency Device | 15” woofer with 3″VC |
High Frequency Device | 1” compression driver with 1.35″VC |
Angular Coverage | 60° |
Frequency Response | 45 Hz – 20 kHz |
SPL 1W/1mt | 96 dB |
Power Handling (AES) | 350 W |
Connectors | 2 x SPEAKON (linked) |
Construction | Plywood with black anti-scratch polyurethane paint |
Pole adapter | 1 x side |
Handles | 2 x sides |
Monitor Taper | 36° |
Weight | 16 kg (35,28 lb) |
Dimensions (W x H x D) | 610x365x545 mm |
The WEDGE Series by PROEL is a range of stage monitors designed to offer not only to professional musicians and rental companies, but also to amateur musicians and non professional users, a highly valuable monitoring solution at a very affordable price.Each of the three WD models provides a perfect sound intelligibility and a high SPL in an extremely lightweight and portable enclosure. The coaxial transducers, designed under PROEL specifications, represent the best choice for stage monitors, not only because they fit into more compact cabinets, but also for the fact that they provide a perfect alignment in the emission of high and low frequencies and a controlled directivity for a perfect listening from any position. The low-profile, stylish and unobtrusive cabinet, finished with scratch-resistant polyurethane painting, fits perfectly on any stage.WD15P, with its full extension and powerful and deep response at the low frequencies, is the ideal monitor for bass and drums players. The horn-loaded HF section and the powerful amplifier make it the perfect solution for monitoring also in very large stages.
System type | 2-way coaxial vented |
Low Frequency Device | 15” woofer with 3″VC |
High Frequency Device | 1” compression driver with 1.35″VC |
Angular Coverage | 60° |
Frequency Response | 45 Hz – 20 kHz |
SPL 1W/1mt | 96 dB |
Power Handling (AES) | 350 W |
Connectors | 2 x SPEAKON (linked) |
Construction | Plywood with black anti-scratch polyurethane paint |
Pole adapter | 1 x side |
Handles | 2 x sides |
Monitor Taper | 36° |
Weight | 16 kg (35,28 lb) |
Dimensions (W x H x D) | 610x365x545 mm |
