MLX2842

28-Input 6-Bus Premium Live Mixer with 24-bit PROFEX digital effects and USB interface

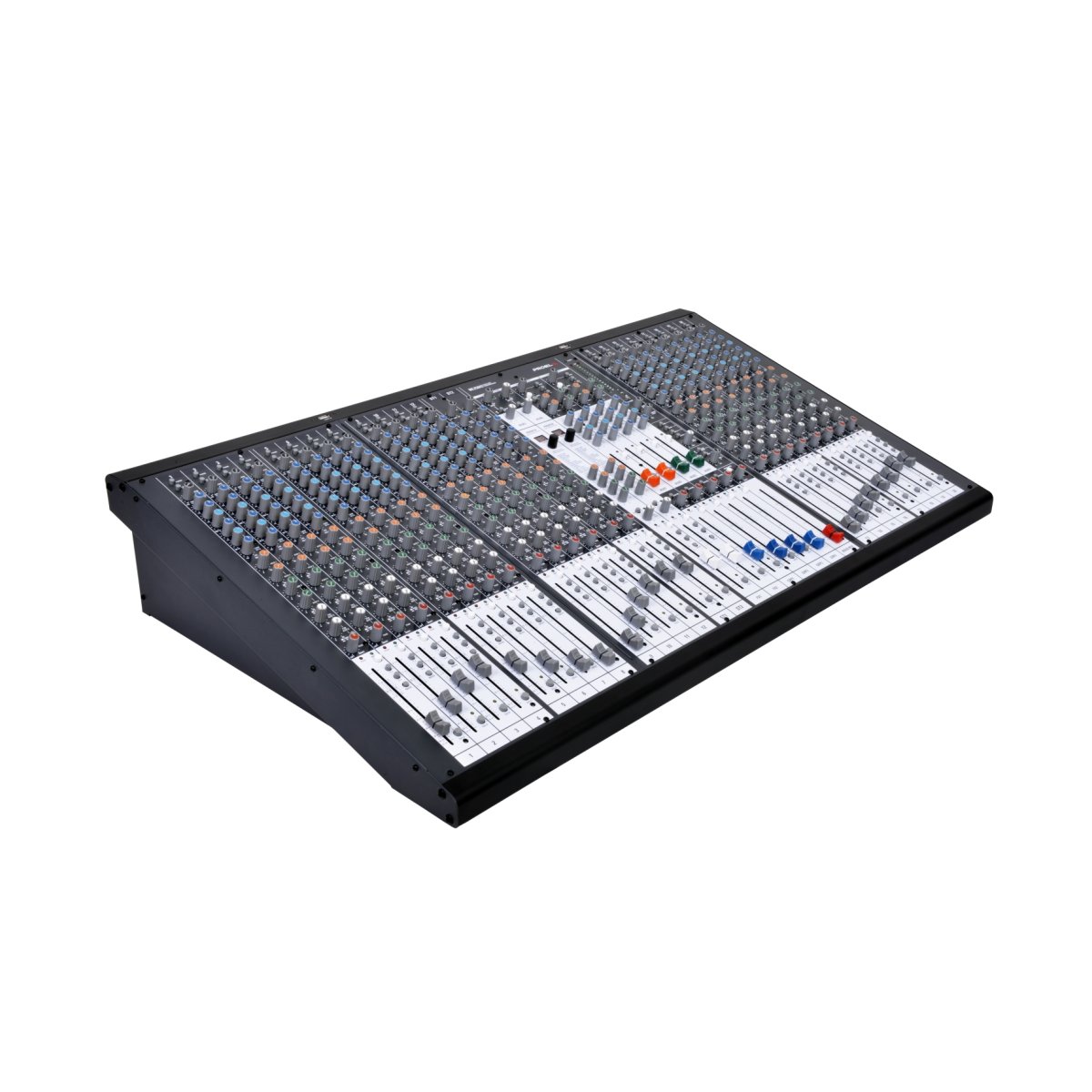

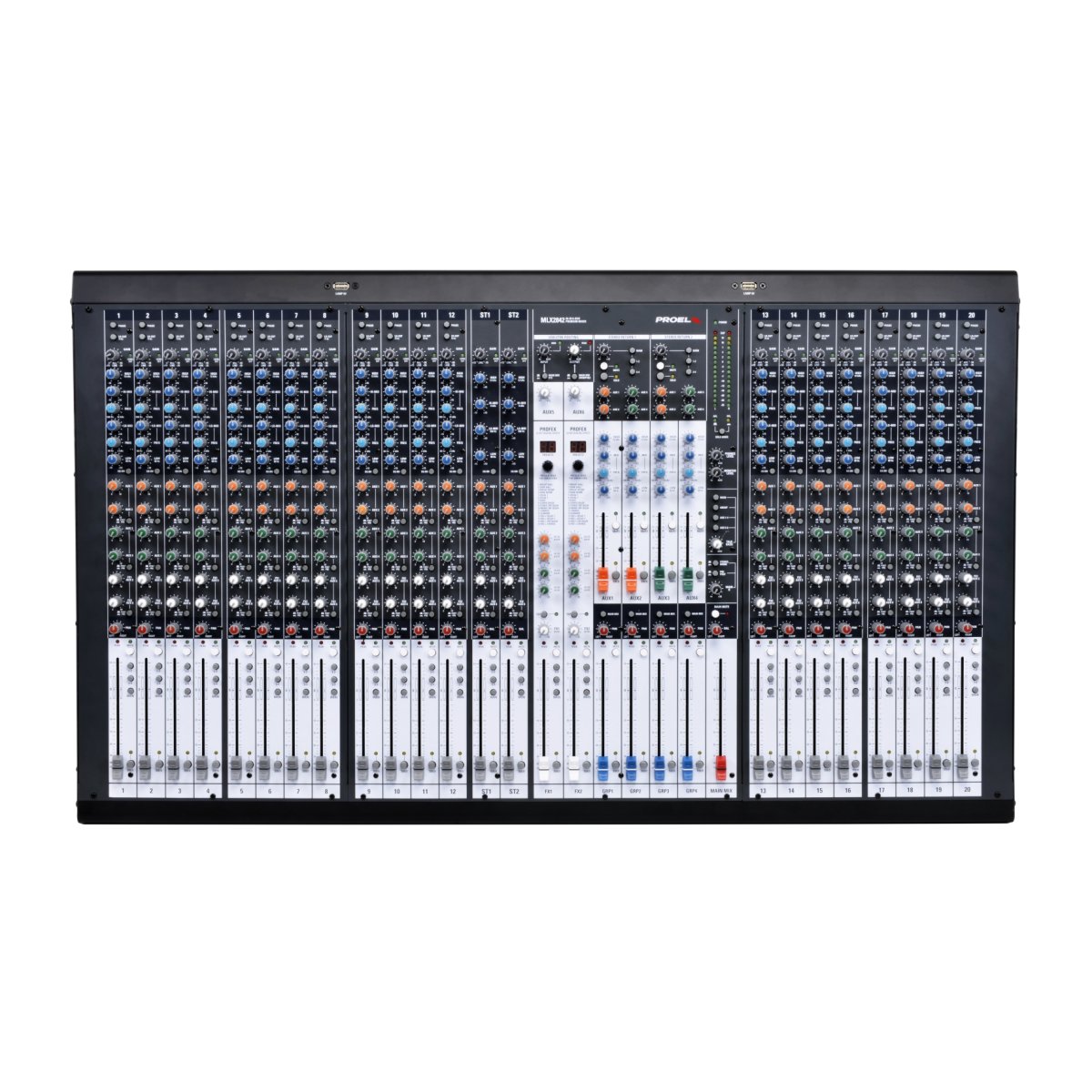

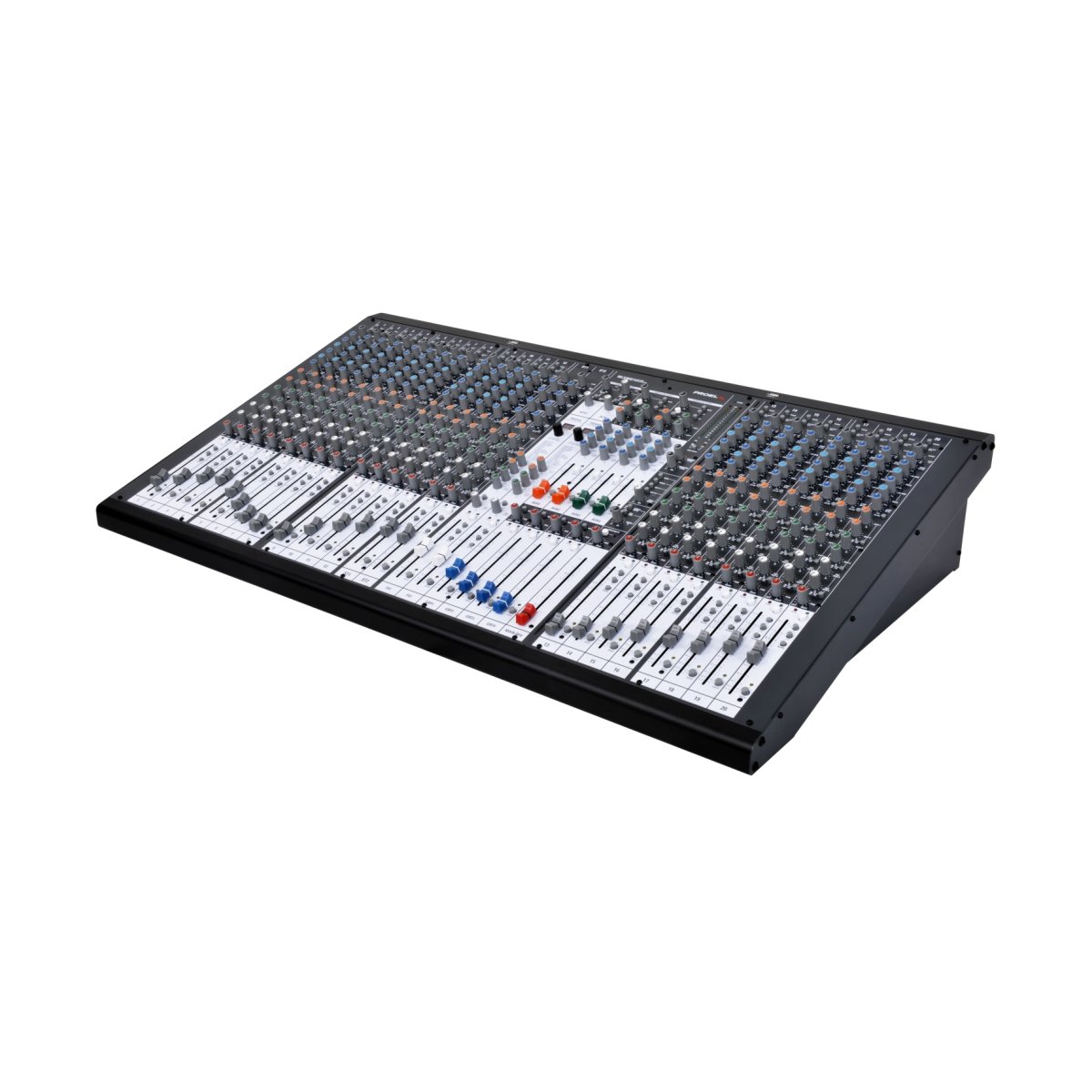

MLX2842 is a large format mixer combining a large number of channels with a full set of features designed to fit any professional sound reinforcement application.The 20 MONO input channels feature ultra-low noise, high-headroom preamps, able to capture the full range of any instrument. The 4-band EQ with two sweep mids has a great response for tweaking your sound in the most musical way, while the EQ ON/OFF switch allows instant comparison. Each model includes two STEREO channels with 4-band EQ. The 6 AUX sends can be set pre- or post-fader in pairs. AUX sends 1 to 4, with 60mm faders and 3-band EQ, provide effective control of the stage monitoring. AUX sends 5&6 can be routed to the two internal effects, to external outboard or used as two additional monitor sends. Two STEREO RETURNS with full routing allow to connect external outboard or two additional stereo instruments.All the channels together with the four GROUPS and the MAIN MIX feature 100mm long-wearing high-quality faders for the most accurate level control.The MLX mixers include two 24-bit PROFEX digital effects able to provide 256 studio-grade gig-ready effect algorithms: this allows to enhance your mix with natural high-resolution reverb or delay effects without the need of external outboard. The effects can be selected thru a convenient LCD display and they can be freely routed to the monitor sends, the groups and the main mix.The MLX series features a built-in USB interface to get CD quality audio to and from your computer: thru the USB interface you can play audio files from the PC or record your live performance directly on hard-disk. The MLX USB interface offers the possibility to route the INPUT signal directly to the MAIN MIX or to STEREO channel 2 and to get the OUTPUT signal from the MAIN MIX or from GROUPS 1&2.The MLX MASTER section offers plenty of services and useful features, such as a MAIN MUTE switch, a TALKBACK section and separate PHONES and MONITOR level controls. Two USB sockets are available for connecting 5V USB LAMPS.The intuitive control surface layout and the color-coded ergonomic knobs of MLX mixers allow to locate easily each function and makes them extremely easy to use. Both models are hosted in a rugged and road-proof metal chassis.

  • 20 state-of-the-art low-noise Mic Preamps
  • Mono channels with 4-band EQs with 2 sweep mid, Lo-Cut, Insert and Direct Out
  • 4 stereo Line inputs with 4-band EQs

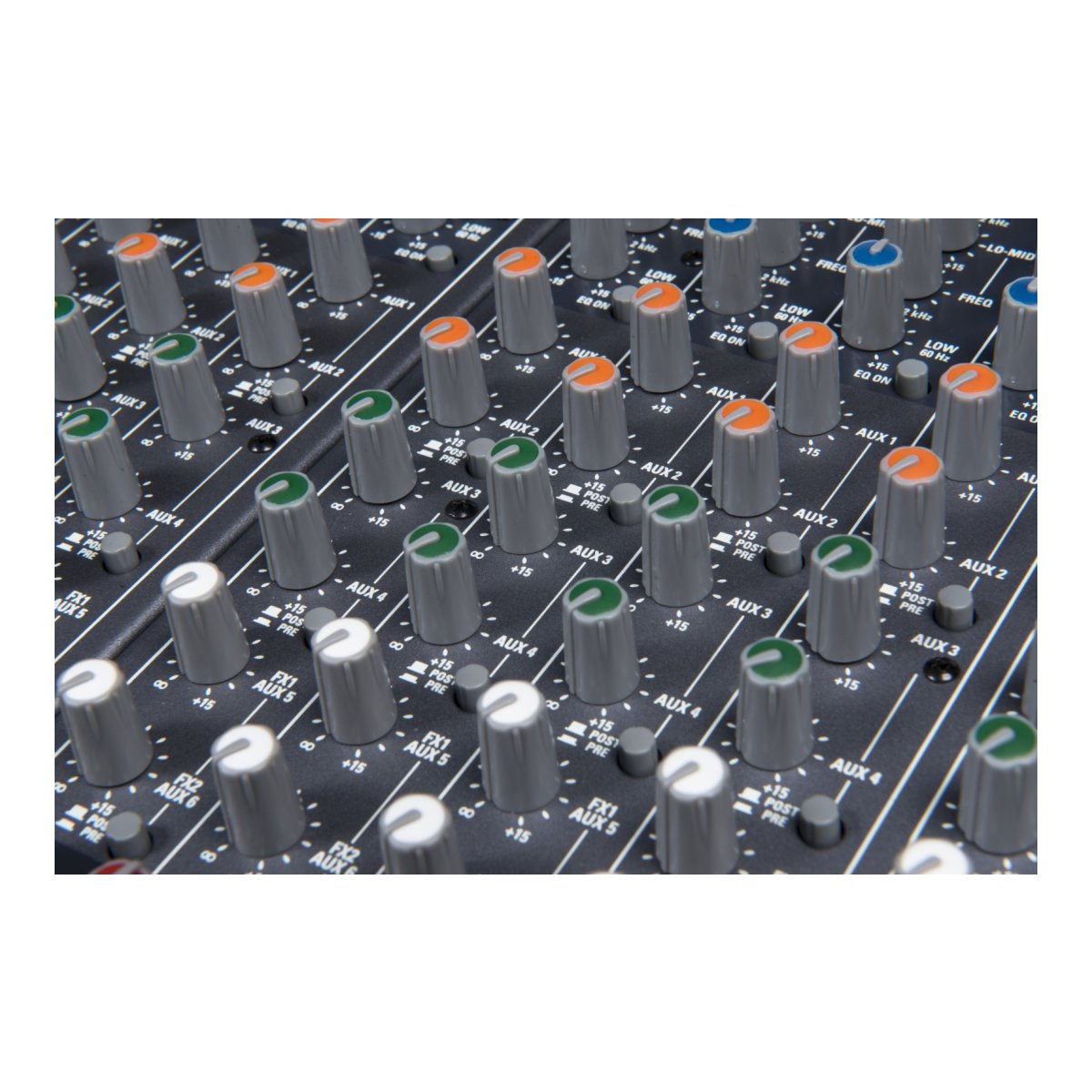

  • 6 Aux sends per channel pre/post fader switchable
  • Peak and Signal LEDs plus Mute, Solo, Subgroup and Main routing switches on all channels

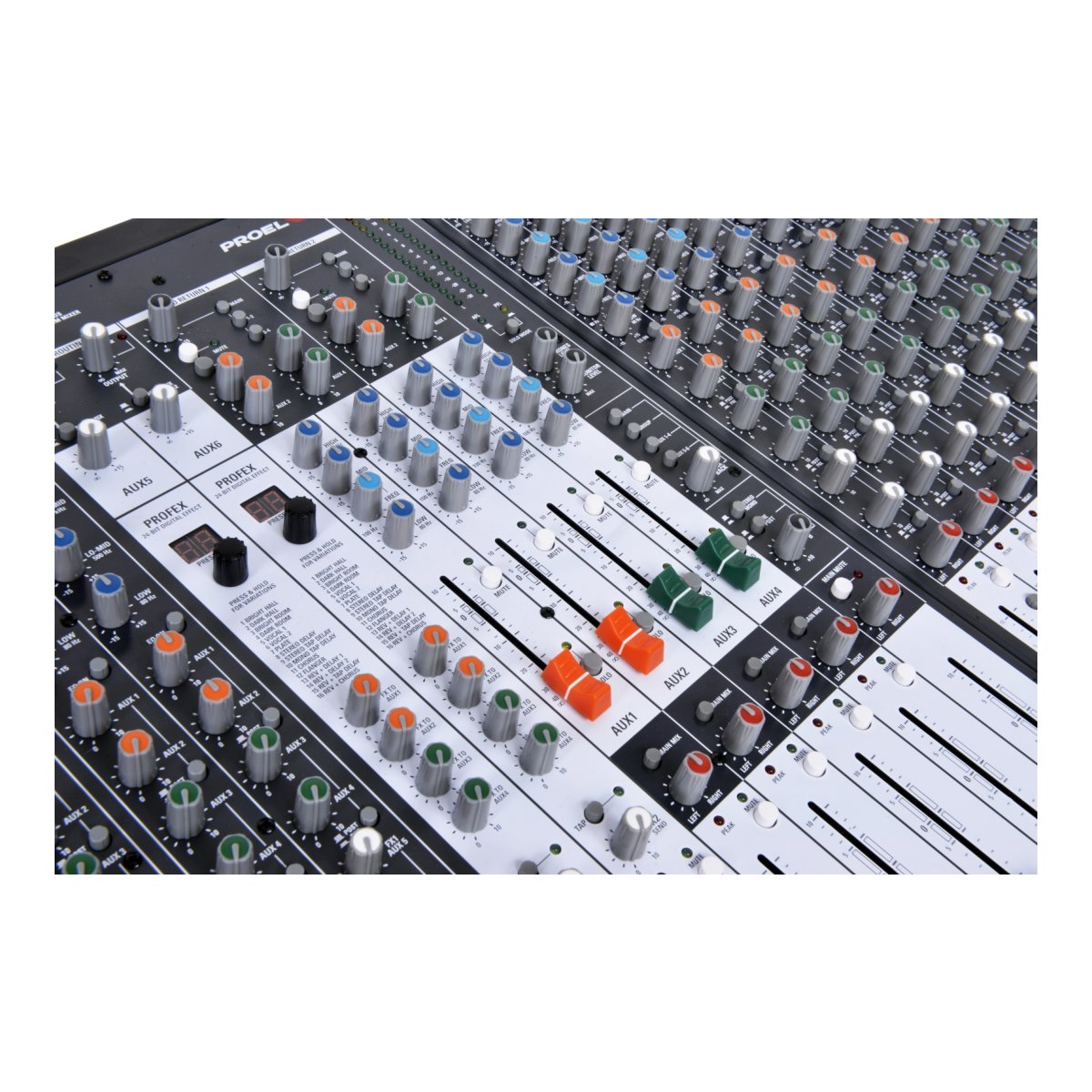

  • Aux 1 to 4 with 3-band EQ, 60mm faders and Insert for advanced stage monitoring
  • 4 Subgroup outputs with Inserts
  • 2 independent Main outputs with Inserts on Main Mix
  • 2 Stereo Returns with comprehensive routing options
  • 2 Headphones and 1 Monitor outputs with independent level control
  • Solo-In-Place with PFL/AFL function plus full-featured Talkback section
  • Main Mute function
  • 2 independent 24-bit PROFEX digital effects with 256 studio-grade presets including reverbs, delays, chorus and combination effects
  • USB audio IN/OUT interface with comprehensive routing options

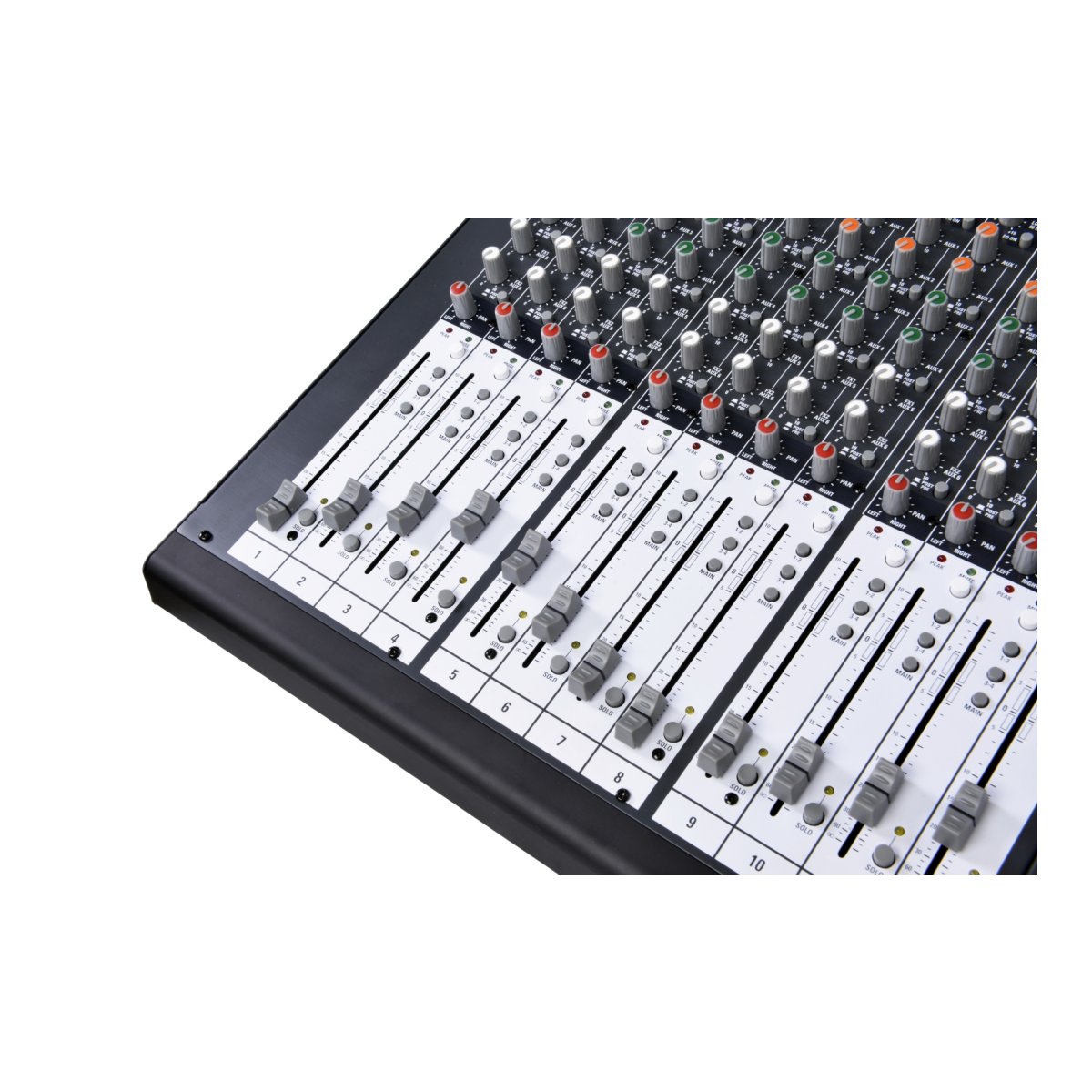

  • Long-wearing 100 mm logarithmic-taper faders
  • High-resolution 2 x 16-LED bar meters
  • Balanced Main Mix, Main B and AUX 1-4 outputs with XLR connectors
  • USB connectors for the use of 5V lamps
  • Internal universal power supply (100 – 240 V~)
  • High-quality components and rugged construction for the maximum durability
  • Designed and Engineered by PROEL Italy

specifiche tecniche

Section    Data  Connectors
MONO INPUT CHANNEL
Mic Input sensitivity from 0 to -50 dB Balanced XLR-F
  impedance 2 Kohm
  max input level +22 dBu
Line Input sensitivity from +15 to -35 dB Balanced JACK
  impedance 10 Kohm
  max input level +22 dBu
Insert send & return level/max -10 dBu / +22 dBu TRS JACK
Direct Out max output level +22 dBu Balanced JACK
Lo cut   75Hz, 18dB/oct.
EQ HIGH (shelving) ±15 dB @ 12KHz
  HI-MID (peaking) ±15 dB from 500Hz to 12KHz
  LO-MID (peaking) ±15 dB from 80Hz to 2KHz
  LOW (shelving) ±15 dB @ 80Hz
STEREO INPUT CHANNEL
Line Input sensitivity from +15 to -35 dB Balanced JACK
  impedance 10 Kohm
  max input level +22 dBu
EQ HIGH (shelving) ±15 dB @ 12KHz
  HI-MID (peaking) ±15 dB @ 3KHz
  LO-MID (peaking) ±15 dB @ 500Hz
  LOW (shelving) ±15 dB @ 80Hz
MASTER SECTION
MAIN MIX max. out level  +28 dBu Balanced XLR-M
MAIN MIX insert send & return level/max -10 dBu / +22 dBu TRS JACK
AUX output max out level +28 dBu Balanced XLR-M, Balanced JACK
AUX 1-4 EQ HIGH (shelving) ±15 dB @ 12KHz
  MID (peaking) ±15 dB from 100Hz to 8KHz
  LOW (shelving) ±15 dB @ 80Hz
GROUP output max out level +28 dBu Balanced JACK
MONITOR output nom. out level +28 dBu Unbalanced JACK
2TRK max out level +15 dBu Unbalanced RCA
  max in level +22 dBu Unbalanced RCA
HEADPHONES max. out level +22 dBu / 600 ohm Stereo JACK
USB   Stereo IN/OUT, 16-bit converter, 48 KHz sample rate Type B
PROFEX DIGITAL EFFECT PROCESSOR
Effects   256 (16 presets x 16 variations): HALL, ROOM, VOCAL and PLATE reverbs; STEREO and MONO TAP DELAY; REV + DELAY, REV + TAP DELAY, REV + CHORUS
A/D and D/A converters – DSP resolution   24 bit
Controls   2-DIGIT LCD, DIAL, TAP DELAY switch
GENERAL SPECIFICATIONS
Impedance all line outputs 120 ohm unbalanced
Crosstalk (meas. at 1 KHz) channel to channel > -80dBu
  mix to mix > -80dBu
  channel to mix > -80dBu
Noise all channels routed, faders down < -90 dBu
  all channels routed at 0 dB < -86 dBu
THD mic to insert < 0,009 % (+30 dB unity gain, +20 dBu output)
  mix to mix < 0,03 % (+30 dB unity gain, +20 dBu output)
Dimensions (WxHxD)   900 x 170 x 515 mm
Weight   17.2 kg
POWER REQUIREMENTS
Power Supply   100-240VAC, 50/60Hz
Consumption   100 W
