HPX4600

Stereo power amplifier 2 x 2300 W at 2 ohm with switchable CLIP limiter

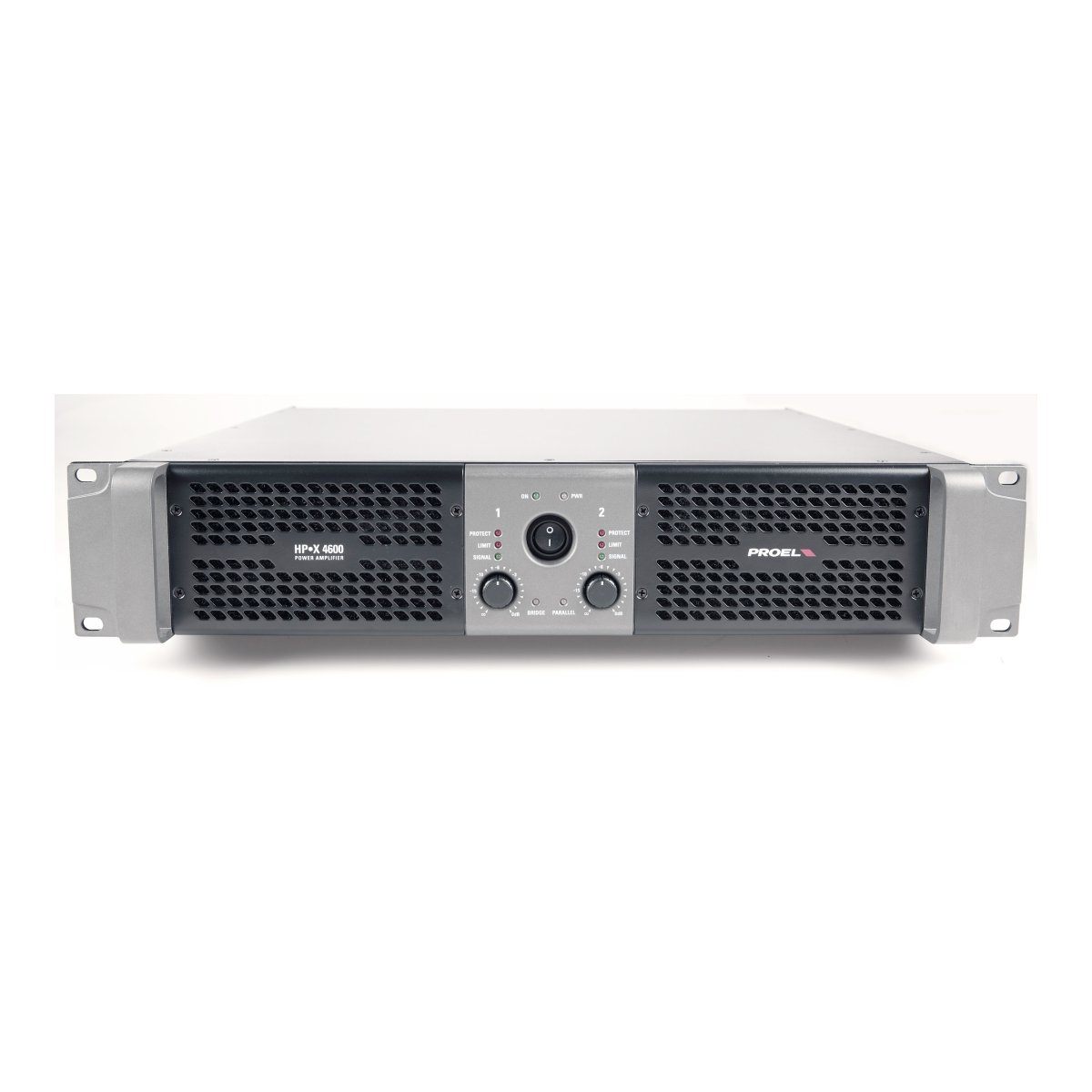

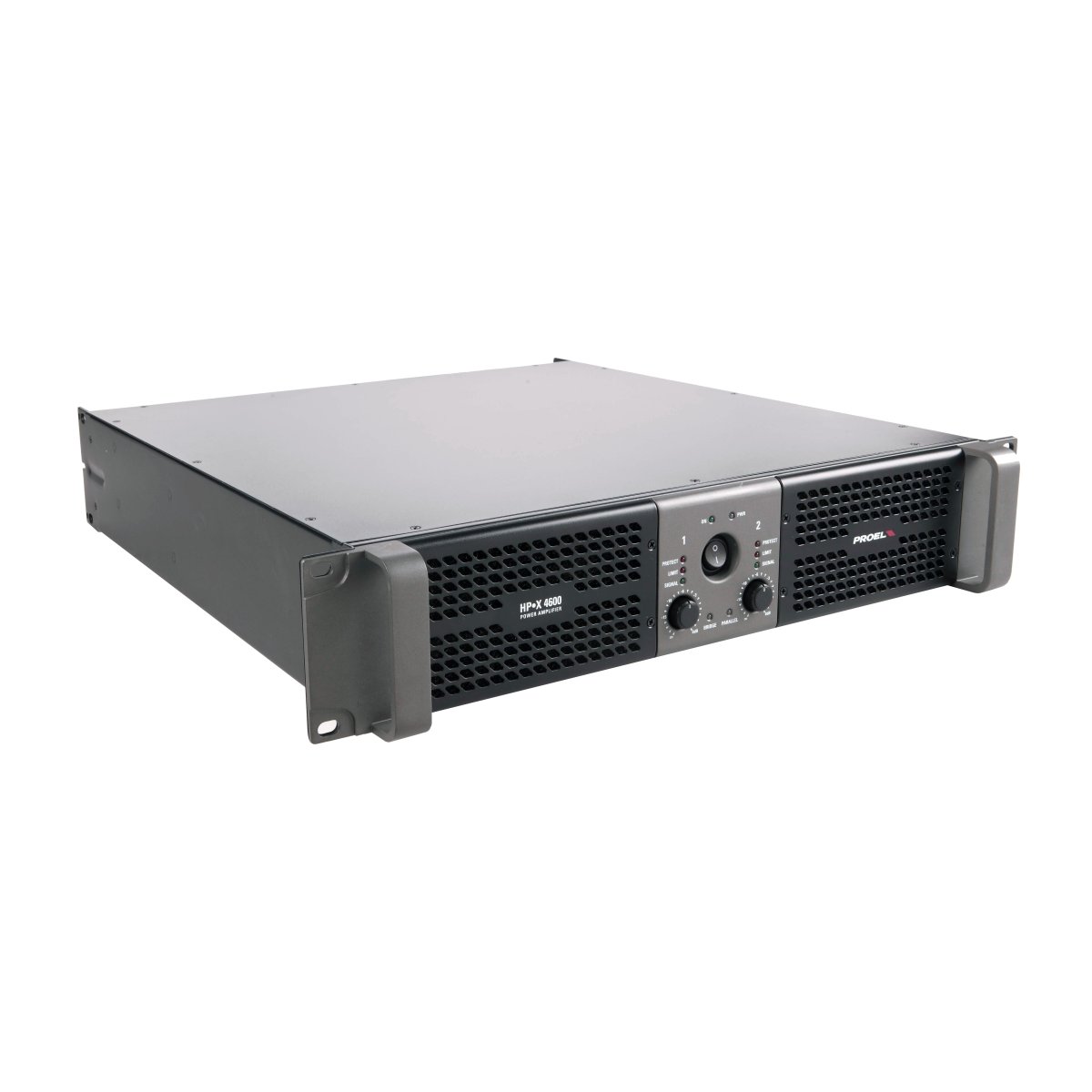

Light-weight and easily manageable, the HPX series amplifiers offer practicality as one of their primary features. Their switching mode power supplies and efficient cooling systems make them particularly suited for use in compact and portable systems and, at the same time, make them reliable and durable even after years of intense use. Thanks to the combination of an efficient 3-tier CLASS H power stage and a reliable switching power supply, the HPX4600, can deliver 4600 watts total at 2 ohm load making it a very convenient source of power in even the most demanding sound reinforcement applications. With an overall e?fficiency higher than 75% and a comprehensive set of controls, including a 3-position GAIN selector and switchable SOFT CLIP LIMITERS, the HPX4600 represents a cost-e?ffective solution also for large sound reinforcement systems requiring very high power levels combined to top quality performance. The front panel, which offers convenient, die-cast handles and a removable dust filter, provides a comprehensive system of LED status indicators and indexed level controls.

Technical Specifications

Power 8 ohm * 850W
Power 4 ohm * 1400W
Power 2 ohm ** 2300W
Power BRIDGE 8 ohm * 3000W
Power BRIDGE 4 ohm ** 4600W
Output Stage 3-tiers CLASS H
Frequency response (+0/-0.5 dB) 20 Hz – 20 KHz
Input Sensitivity (nominal) 0 dBu / 0.775Vrms: 40 dB
1.0 Vrms (0 dBV): 38 dB
+8 dBu / 1.95Vrms: 32 dB
Input Sensitivity (fixed gain)
GAIN (nominal/fixed)

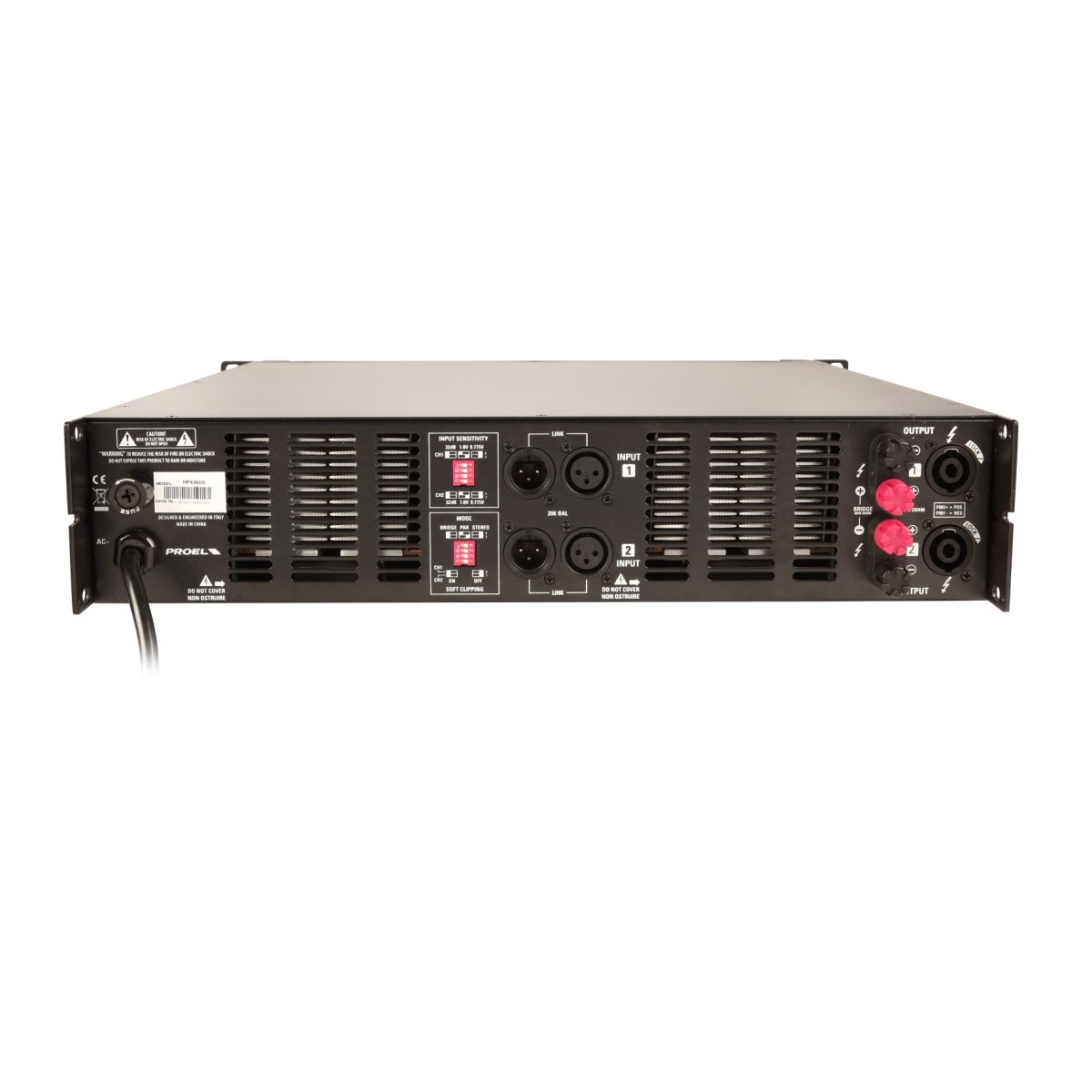

Input Connectors / Impedance XLR M (with XLR F LINK), 20 Kohm (balanced), 10 Kohm (unbalanced)
Output Connectors SPEAKON and Binding Post
Damping Factor > 200
Slew Rate > 20 V/uS
S/N Ratio (unweighted) > 90 dB
THD+N < 0.1%
Controls INPUT LEVEL, INPUT SENSITIVITY, STEREO/BRIDGE/PARALLEL, LOW PASS NOTCH (LPN), GND LIFT
LED Indicators POWER,   ON,   PARALLEL,   BRIDGE,   SIGNAL,   LIMIT,   PROTECT
Cooling Variable speed DC fan
Protections AC low power, DC, thermal, short circuit, VHF, CLIP limiter, SOFT CLIP limiter
Mains Supply Voltage 230 VAC (±10%) 50/60 Hz or 120VAC (±10%) 50/60 Hz
Maximum Consumption 2330 VA
Rated Consumption *** 620 VA
Standby Consumption 5 VA
Dimensions (W x H x D) 483 x 89 x 505 mm
19″ x 3.5″ x 19.9″
Weight 13 Kg (28.7 lb)
* RMS both channel THD < 1%
** 40 ms burst
*** Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
