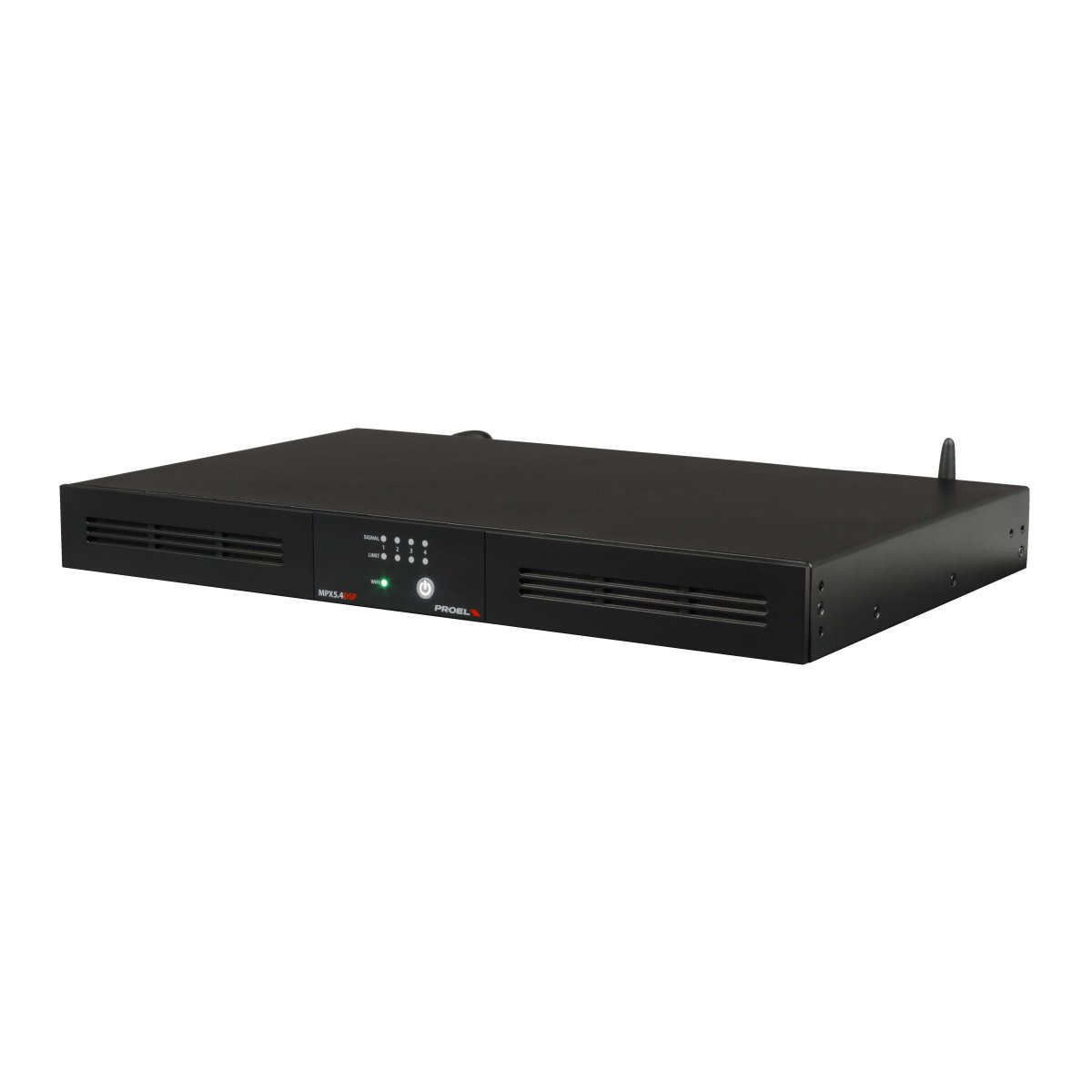

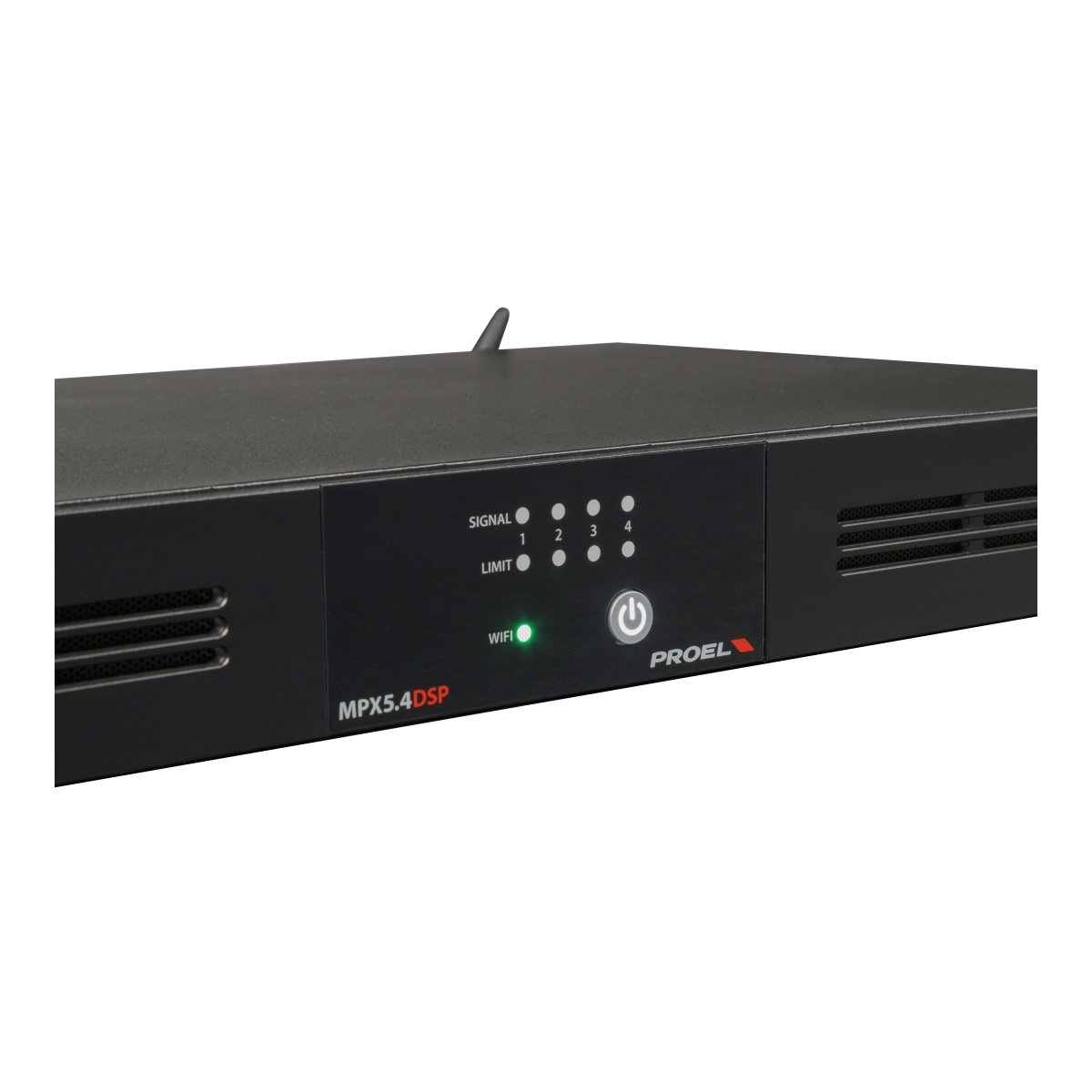

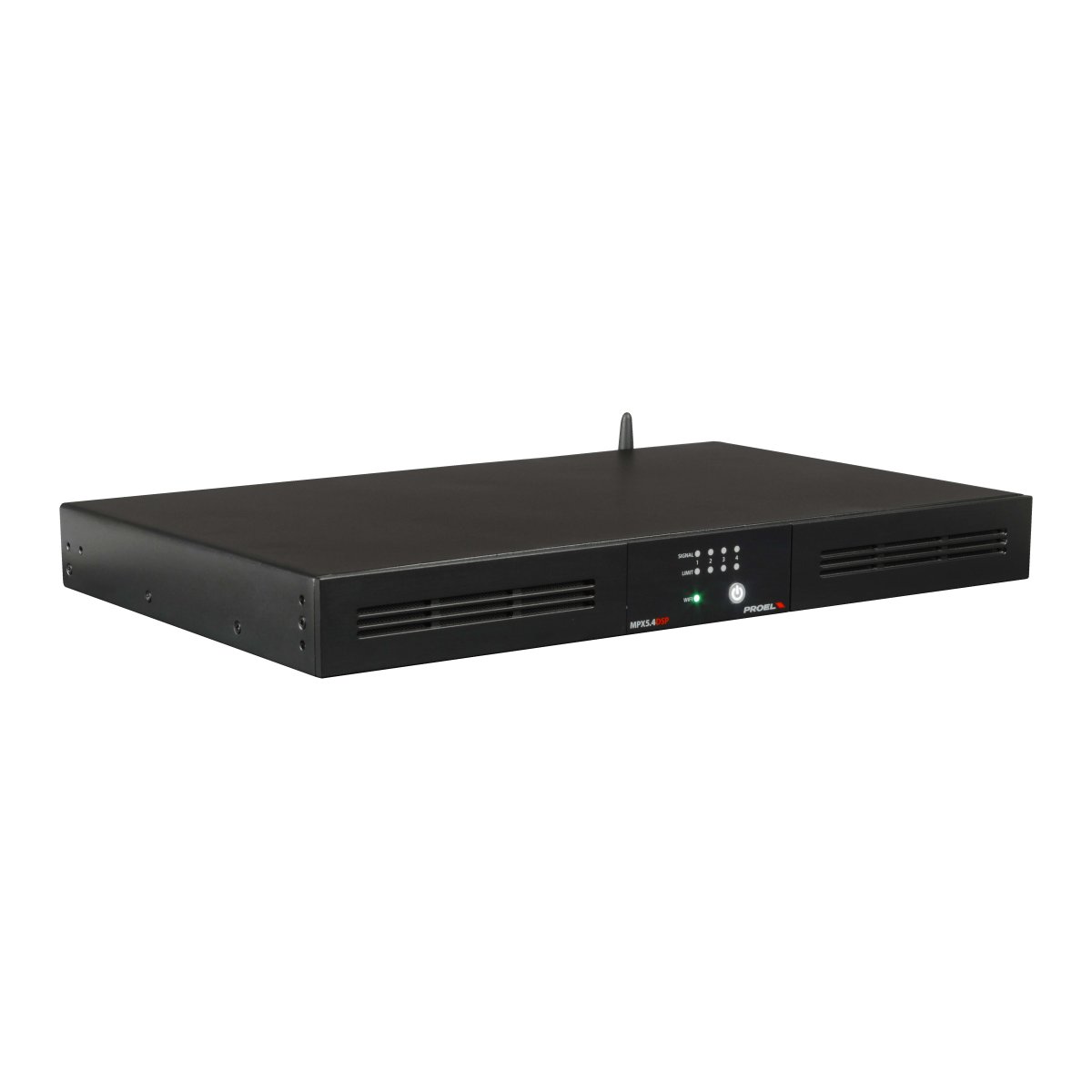

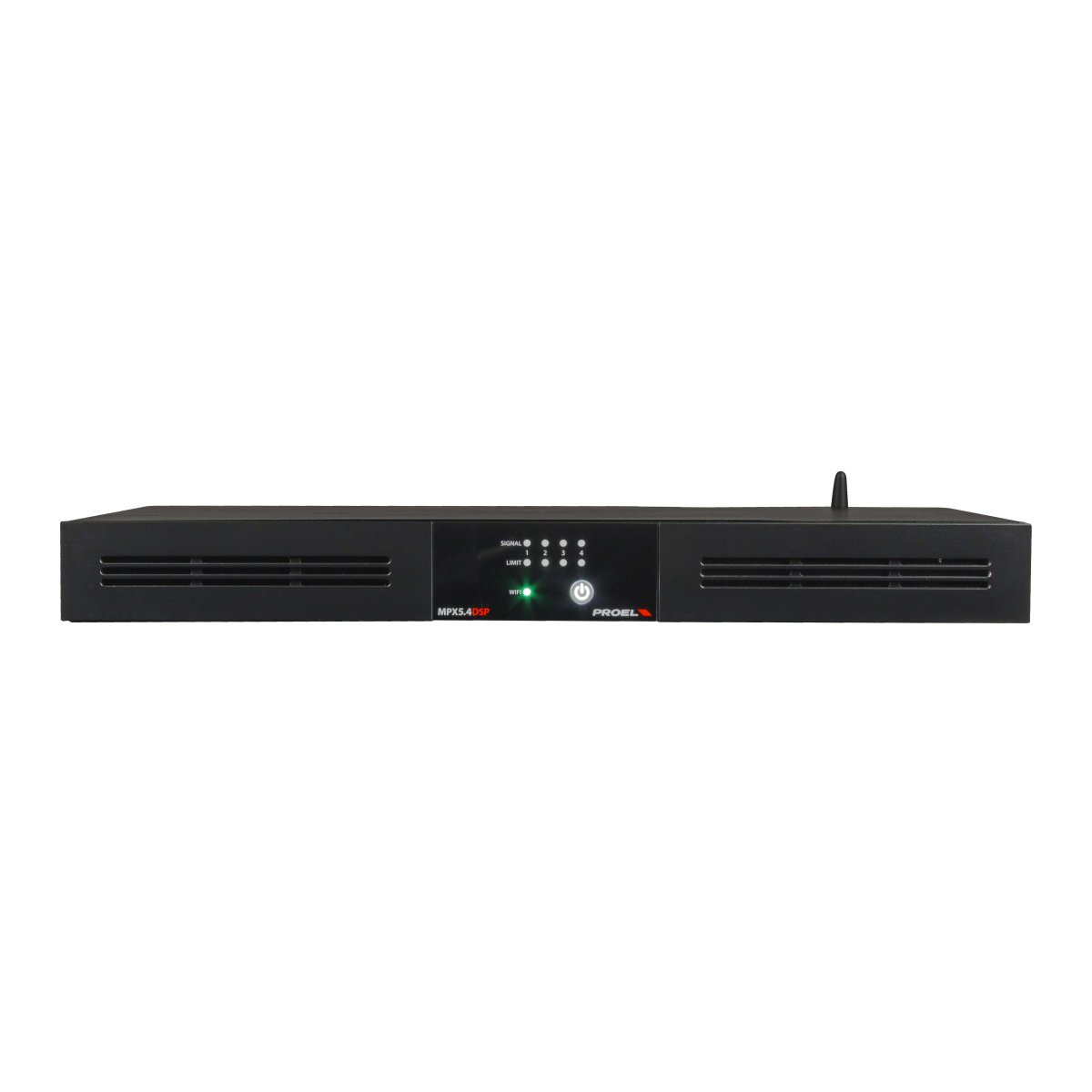

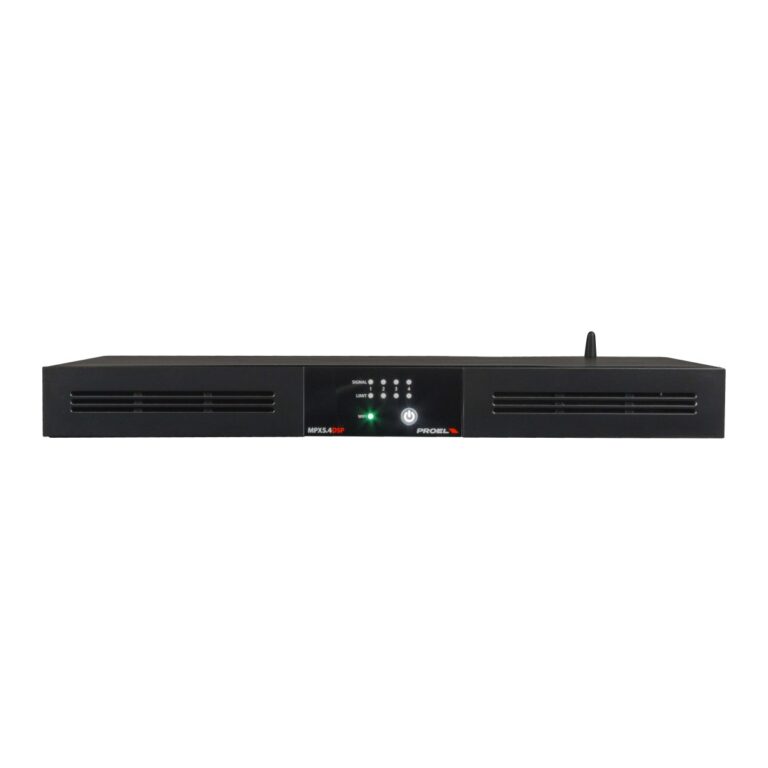

MPX5.4DSP power amplifier is designed to provide configurable, consistent and reliable high performance audio power amplification for residential, commercial and entertainment applications.
MPX5.4DSP combines full matrix DSP, many power & channel variants, speaker presets, intuitive control software, fast installation, scalable Hi-Z/Lo-Z power sharing, customizable control via external potentiometer and switches.
• Configuration and control using WebGUI, WebGUI is a graphical interface that allows to control MPX5.4DSP from any Internet browser running on any computer, tablet or smartphone.
• Monitoring and control over TCP/IP
• Programmable GPIO (general purpose input/output) control port
• Four fully configurable signal inputs
• Four fully configurable power outputs
• 48kHz signal processing
• Digital signal processing (EQ Filters, crossover, delay, limiter, FIR)
• Import/Export Speaker PRESET
• Backup/Restore full Device configuration file
• Power saving mode
• 70V/100V direct drive
• Each channel independently configurable for low Z or high Z operation
• Advance protection circuits
| Input Sensitivity |
| MIC / -10dBv / +4dBu / +14dBu |
| Analogue Inputs |

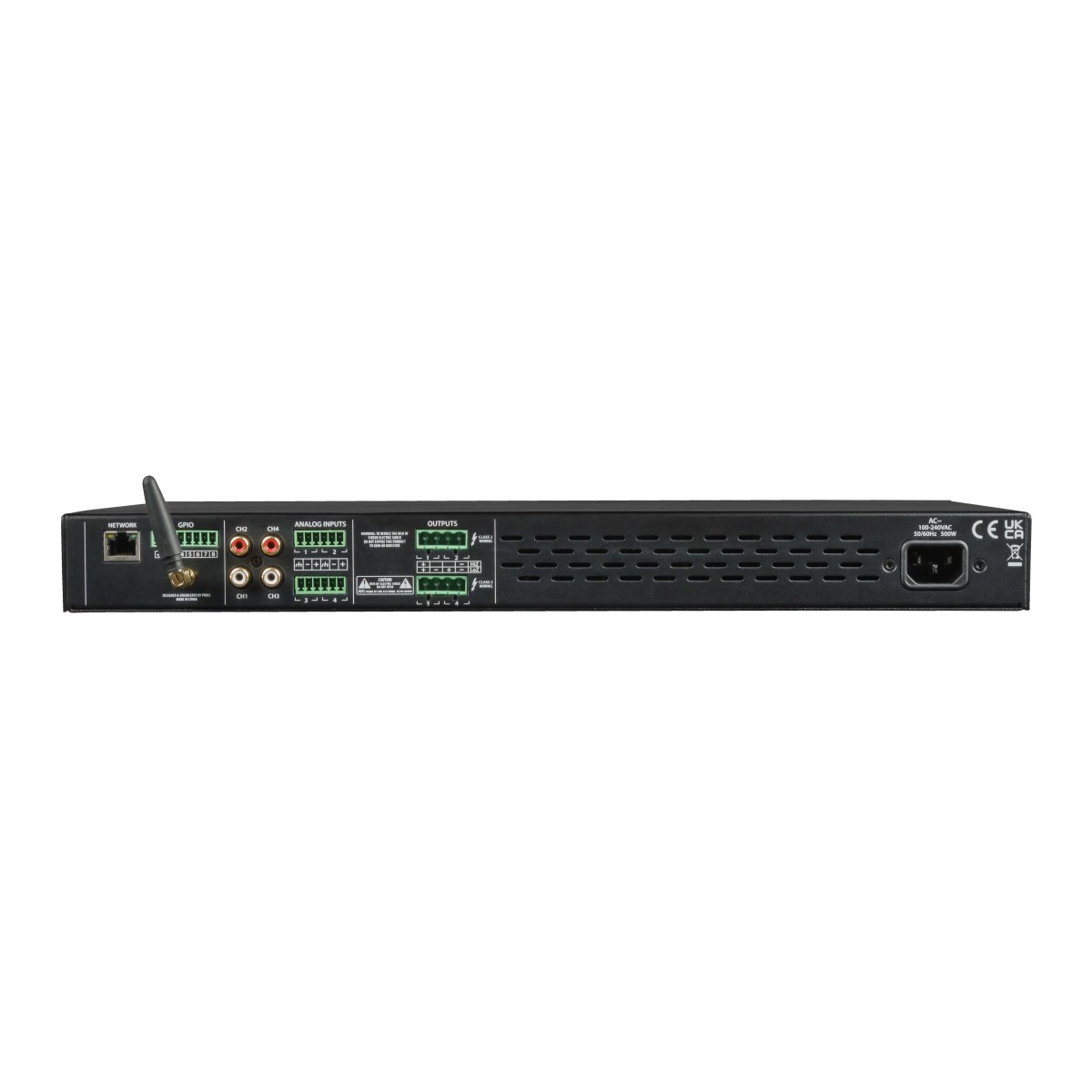

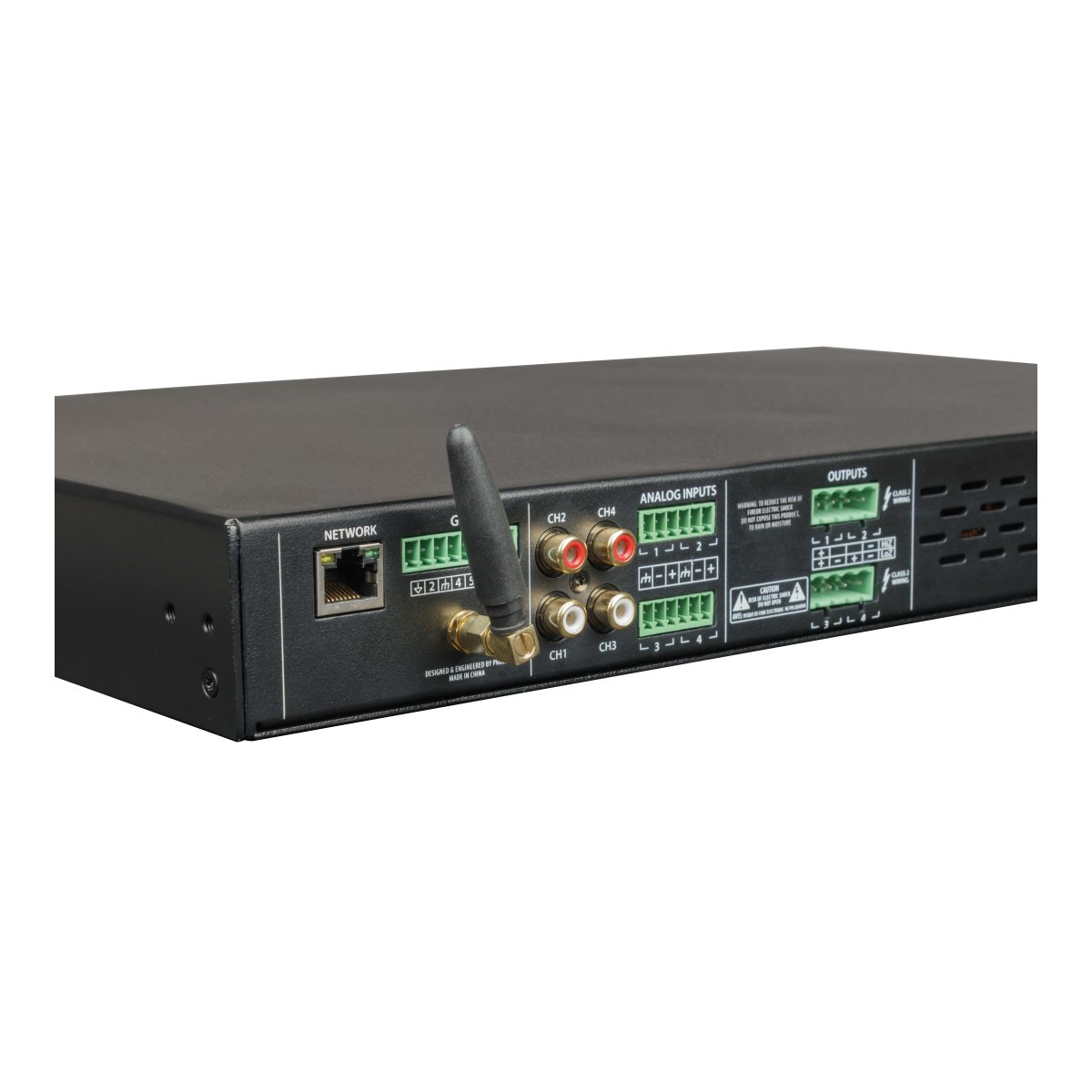

| 4x Female RCA / 2x Euroblock 3.5mm 6pin |
| GPIO port |
| Euroblock 3.5mm 8pin |
| DSP control |
| Internal WebGUI |
| LAN control |
| WiFi / Ethernet tcp/ip |
| Channels |
| 4x Lo-Z / 2x Hi-Z |
| Output Power @ 4 Ω |
| 4x 125W (SE) |
| Output Power @ 8 Ω |
| 4x 125W (SE) |
| Output Power @ 70 V |
| 2x 250W (BTL) |
| Output Power @ 100 V |
| 2x 250W (BTL) |
| Total System Power |
| 500 W |
| Output Voltage |
| 70 Vp / 140 Vpp (unloaded) // Bridged 140 Vp / 280 Vpp (unloaded) |
| Output Connectors |

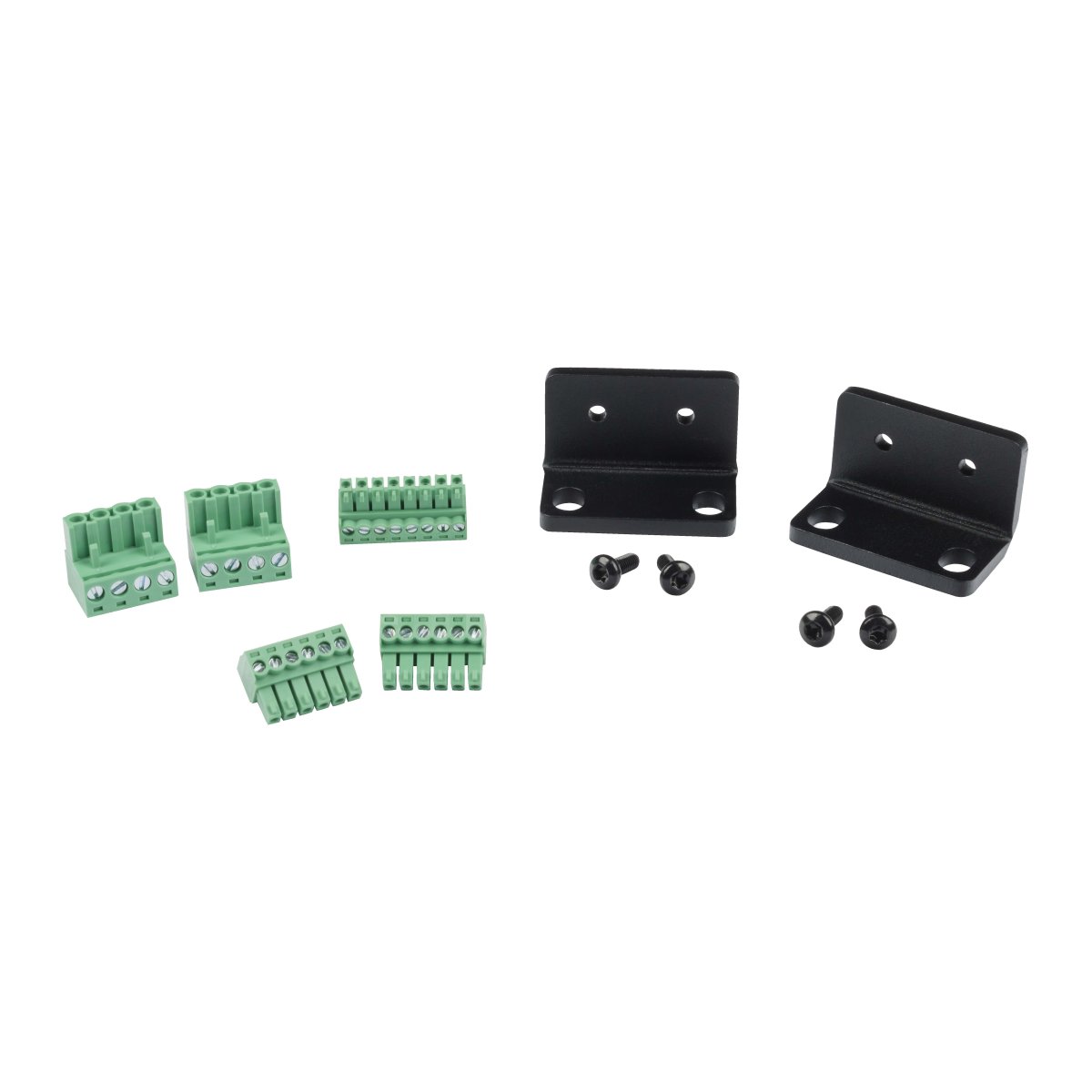

| 2x Euroblock 5.08mm 4pin |
| Signal to Noise-Ratio |
| > 100 dB (A-weighted, 20 Hz ÷ 20 kHz, 8 Ω load) |
| THD+N (typical) |
| < 0.05% (20 Hz ÷ 20 kHz, 8 Ω load, 3 dB below rated power) |
| Frequency Response |
| 20 Hz ÷ 20 kHz (+/- 0.5 dB, 8 Ω load, 3 dB below rated power) |
| Protection Circuits |
| Short circuit, DC, Undervoltage, Temperature and Overload protection |
| Operating temperature |
| 0 ÷ 40 °c |
| Operating Voltage |
| 100V ÷ 240V, 50 / 60 Hz |
| Standby Consumption |
| < 0.5 W |
| Rack Unit |
| 1 RU |
