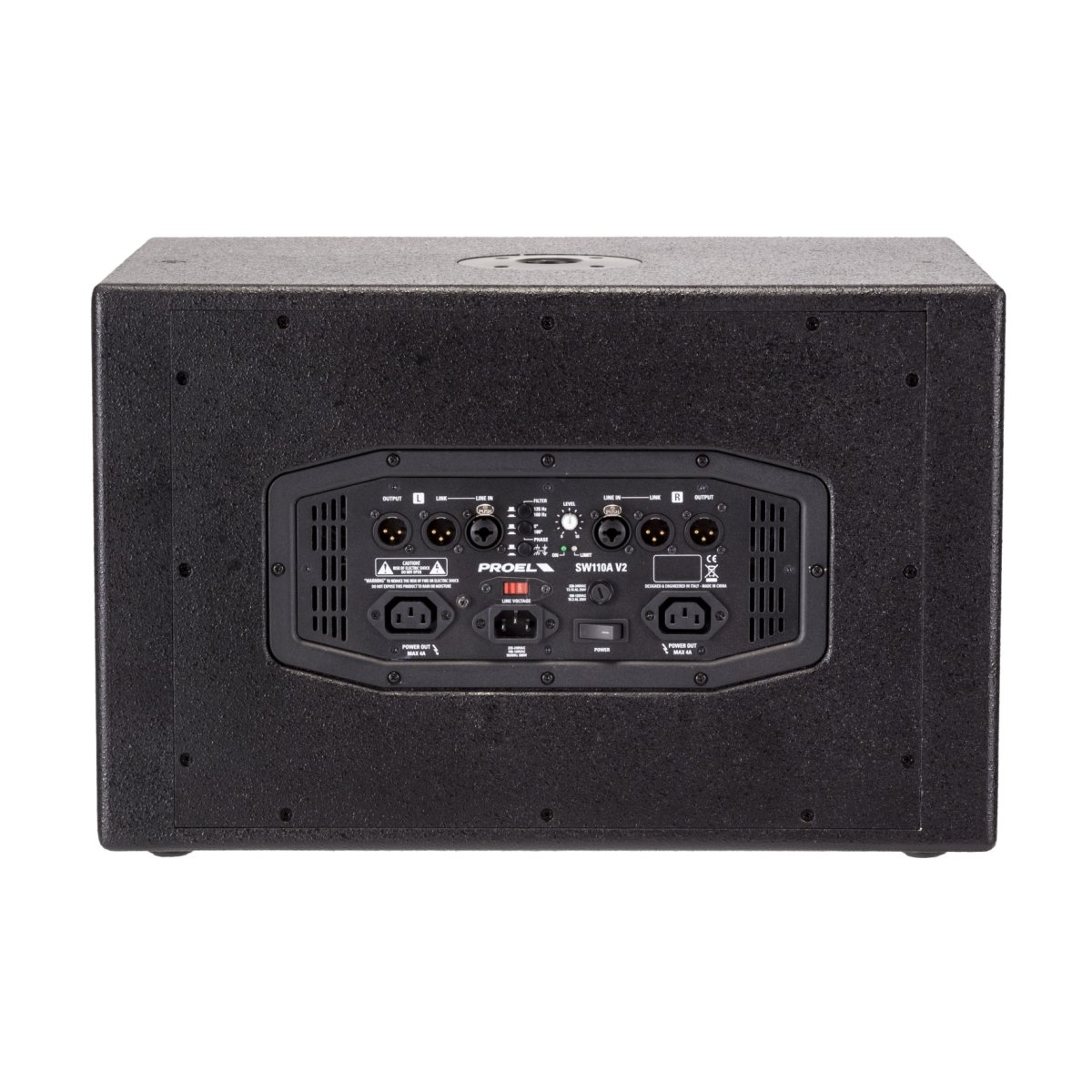

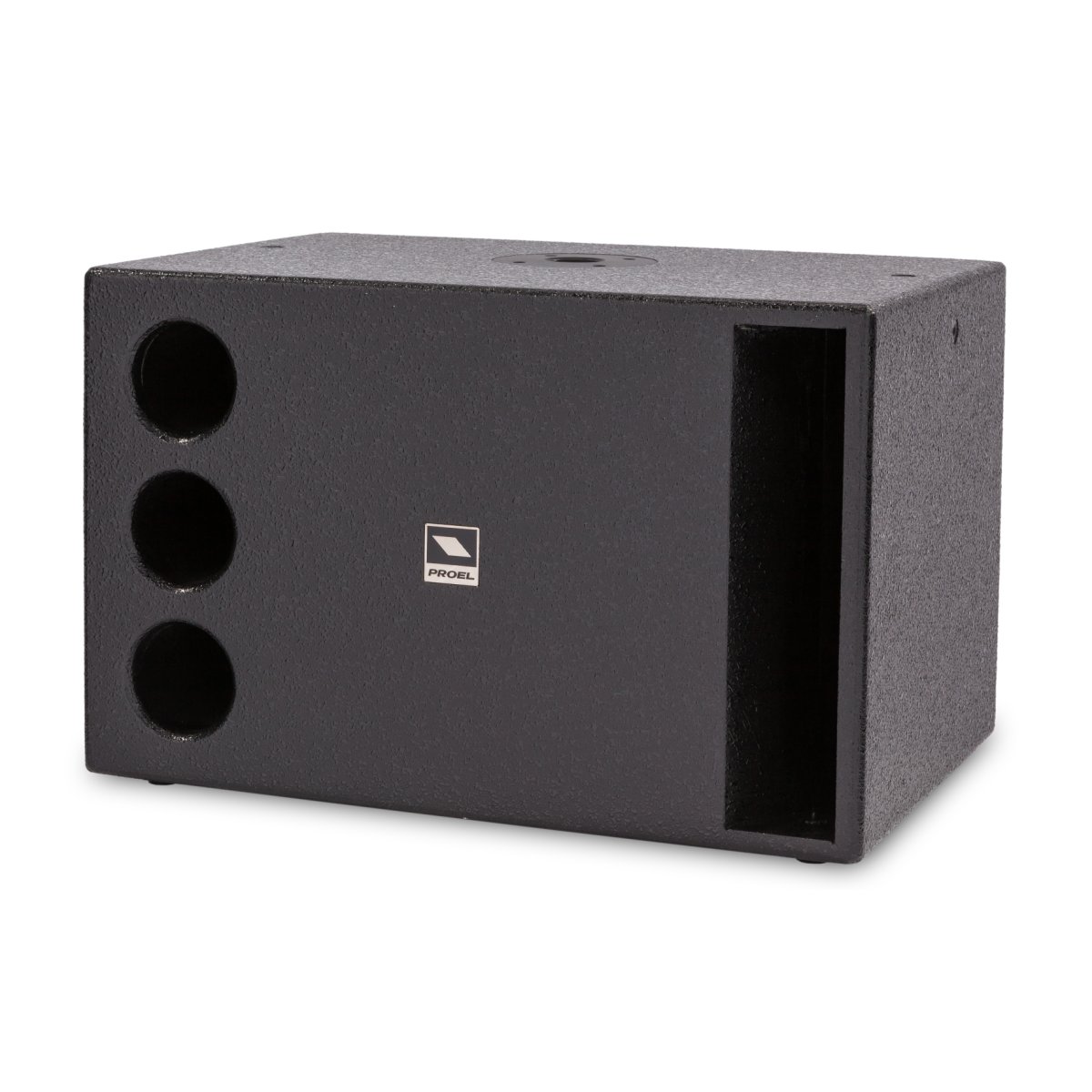

The SW Series is a range of sub-woofers designed to complement PROEL full-range passive or active speakers. The variety of size, power and SPL offered by the five SW models provides the perfect low extension solution for any speaker model available in the PROEL range.All the SW models feature large VC woofers and band-pass or vented design, which provide very ‘punchy’, dynamic lows together with an extended low frequency response.The CLASS D amplifier modules with Switch Mode Power Supply can generate a massive amount of continuous power in a compact and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch. The cabinets are built with 15/18mm plywood and feature 2 or 3 metal handles and sturdy 75mm wheels for an easy transport (except SW110).
| System type | Bandpass enclosure subwoofer |
| Loudspeaker | 10” woofer with 2×2.5″ VC |
| Amplifier Continuous Power | 250 W |
| Frequency Response | 46 Hz – 160 Hz |
| Max SPL | 116 dB |
| Connectors | IN: 2 x NEUTRIK COMBO OUT: 2 x NEUTRIK XLR-M LINK: 2 x NEUTRIK XLR-M |
| Controls | Volume, GND lift X-over Frequency, Phase |
| Power Supply | 230 VAC or 120 VAC 50/60 Hz |
| Weight | 14 kg (37.5 lb) |
| Cabinet | 15/18 mm plywood Black anti-scratch paint 1 handle 1 x pole holder |
| Dimensions (W x H x D) | 520 x 330 x 350 mm |
The SW Series is a range of sub-woofers designed to complement PROEL full-range passive or active speakers. The variety of size, power and SPL offered by the five SW models provides the perfect low extension solution for any speaker model available in the PROEL range.All the SW models feature large VC woofers and band-pass or vented design, which provide very ‘punchy’, dynamic lows together with an extended low frequency response.The CLASS D amplifier modules with Switch Mode Power Supply can generate a massive amount of continuous power in a compact and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch. The cabinets are built with 15/18mm plywood and feature 2 or 3 metal handles and sturdy 75mm wheels for an easy transport (except SW110).
| System type | Bandpass enclosure subwoofer |
| Loudspeaker | 10” woofer with 2×2.5″ VC |
| Amplifier Continuous Power | 250 W |
| Frequency Response | 46 Hz – 160 Hz |
| Max SPL | 116 dB |
| Connectors | IN: 2 x NEUTRIK COMBO OUT: 2 x NEUTRIK XLR-M LINK: 2 x NEUTRIK XLR-M |
| Controls | Volume, GND lift X-over Frequency, Phase |
| Power Supply | 230 VAC or 120 VAC 50/60 Hz |
| Weight | 14 kg (37.5 lb) |
| Cabinet | 15/18 mm plywood Black anti-scratch paint 1 handle 1 x pole holder |
| Dimensions (W x H x D) | 520 x 330 x 350 mm |
